Waveform Generator/Fast Measurement Unit (WGFMU) Module for the B1500A
- Keysight/B1530A
- How to buyWaveform Generator/Fast Measurement Unit (WGFMU) Module for the B1500A？PleaseOnline Quote Requestor 24h service tel：13715327187
 |
Description：
主要技术指标
General Features
- Single slot module for the B1500A Semiconductor Device Analyzer
- Two independent channels per module
- Remote-sense and Switch Unit (RSU) supplied for each channel
- Up to ten channels (five modules) supported in a single mainframe
Measurement Capabilities
- Supports accurate fast IV and time-domain measurement for a wide range of applications such as pulsed IV, NBTI, and RTS measurement
- High accuracy (current measurement to 1 nA) and high resolution (0.2% range resolution without averaging)
- Arbitrary linear waveform generation (ALWG) feature supports the creation of both DC and complex AC waveforms
PDF 182 KB 描述
The WGFMU is an innovative parametric module for the B1500A.
It integrates arbitrary linear waveform generation (ALWG) capability with high-speed IV measurement. The ALWG function allows you to generate not only DC, but also various types of AC waveforms (such as pulses, staircase sweeps, and staircase pulsed sweeps) with 10 ns programmable resolution. In addition, the WGFMU also performs fast AC measurement in synchronization with the applied waveforms. The combination of these capabilities into a single, dual-channel module enables the characterization of complex high-speed phenomena without the need to switch between different resources to do the DC/AC voltage forcing and the current or voltage measurement. This makes the WGFMU a powerful solution for a wide range of transient and time-domain phenomena.
Application Topics
- This 39-page product note covers various capabilities of B1530A.
Pulse/Arbitrary Waveform Generator with Integrated Measurement Capabilities - Measuring Pulsed/Transient Electrical Properties of OTFTs
- Characterizing Random Noise in CMOS Image Sensors
To view a recorded presentation on the new WGFMU module and its applications please click here.

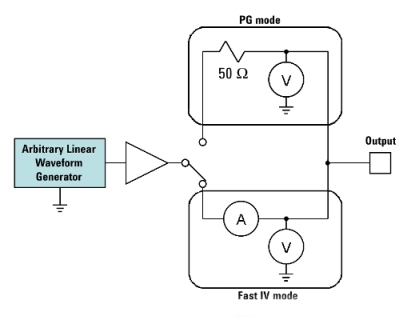

Equivalent circuit schematic of one WGFMU channel (each module has two independent channels):

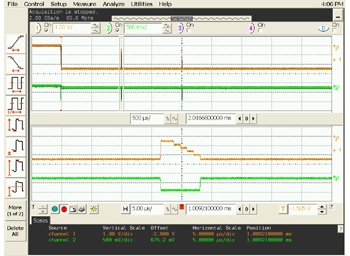

The WGFMU can perform complex DC/AC stressing and transition between stress and measurement without creating any glitches:
Quality Assurance：
Most of our products were examined strictly before shippinp and can apply for a calibration report.
