Tektronix p6206

• Tektronix/Tektronix p6206
• How to buyTektronix p6206？PleaseOnline Quote Requestor 24h service tel：13715327187

Description：

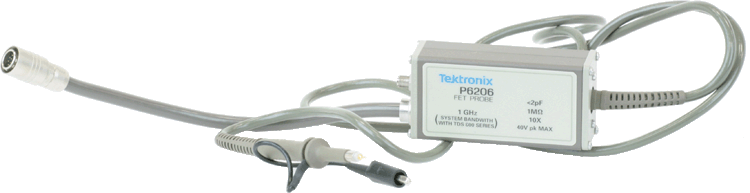

The P6206 Probe is a Low Circuit Loading Signal Acquisition probes for CSA (Communications Signal Analyzers), DSA (Digitizing Signal Analyzers), 11000 Series and the TDS Family of Oscilloscopes. The P6206 is designed with FET devices for its inputs, which allows very high input resistance values and low input capacitances. The P6206 offers a wide linear dynamic input range for accessing most digital device families using today''s logic voltage levels. Power for the P6206 is supplied by the CSA, DSA, TDS and 11000 Series mainframes through the TEKPROBE BNC Interface, eliminating the need for extra cabling and/or external power supplies.
	Features: Bandwidth: dc to 1 GHz Dynamic range: ±10.0 V Attenuation: 10X DC resistance: 1MΩ Input capacitance: 2 pF Cable length: 1.6 meters Shipping weight: 4 lb

Quality Assurance：

Most of our products were examined strictly before shippinp and can apply for a calibration report.
