YOKOGAWA/AQ6330/光谱分析仪

• YOKOGAWA/AQ6330/光谱分析仪
• 欲购买或租赁YOKOGAWA/AQ6330/光谱分析仪？请在线咨询或拔打24小时电话：13715327187

详细资料：

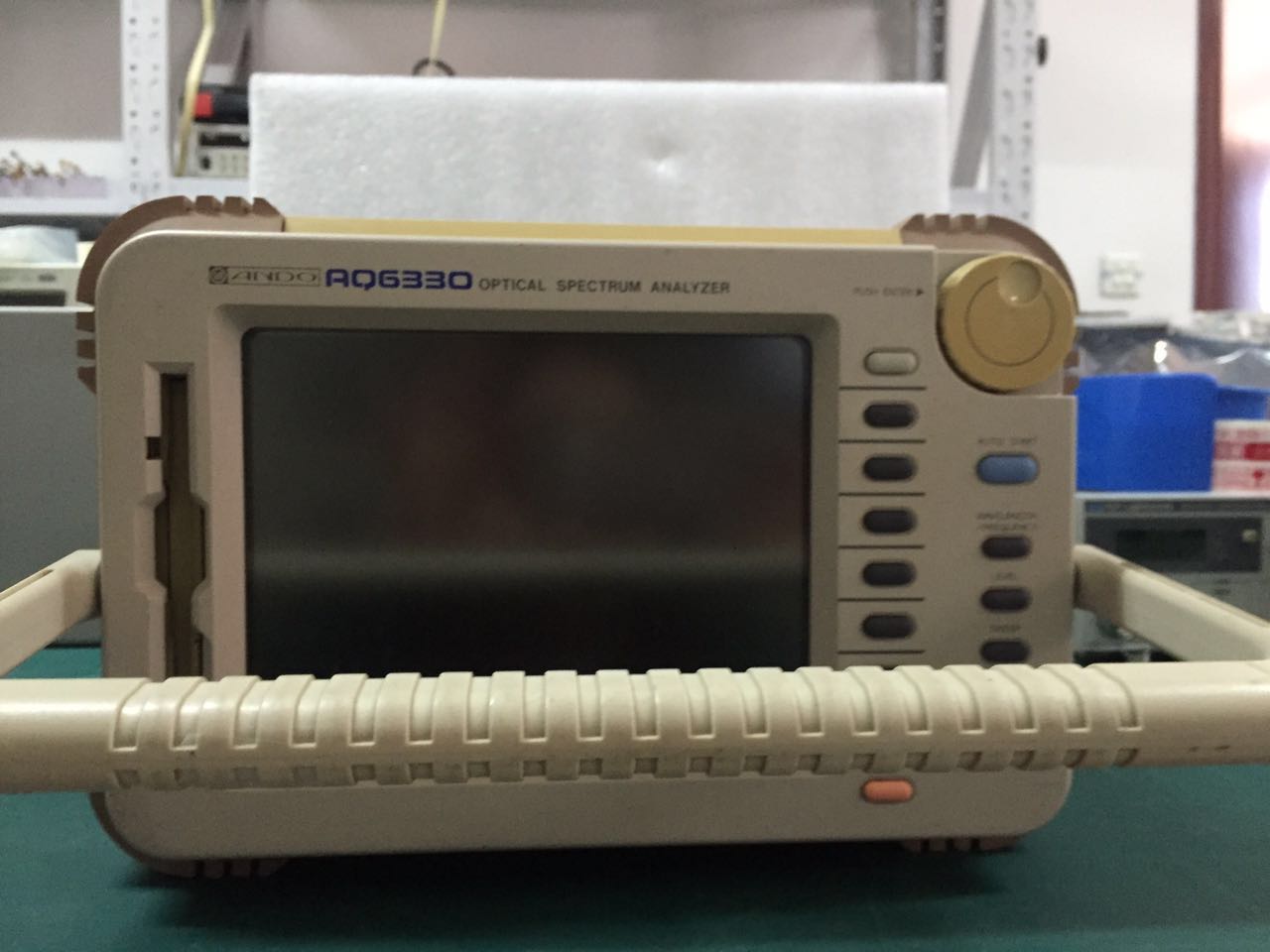

 The AQ6330 is like no other optical spectrum analyzer you have ever seen. It is compact, lightweight - very portable. It weighs only 8 kg (18 lbs.), yet has all the features you need from a WDM system for field use.

Wavelength:1200~1700nm ,   Dynamic range: 40dB (peak ±1nm)

Features:

• Compact and lightweight:Approx. 300 (W) x 200 (H) x 220 (D) mm, approx. 8 kg (18 lbs.).
• WDM analysis function: Analyzes wavelength, level and SNR of up to 100 channels.
• Long term monitoring: Capable of monitoring wavelength, level and SNR of each WDM channel.
• High wavelength accuracy: Accurate to within ±0.05 nm for wavelength from 1500 to 1570, ±0.02 nm linearity, within a 1550 nm range.
• High-level accuracy: High accuracy: ±0.3dB.
• Internal wavelength calibration.
• Low polarization dependency:±0.05dB
• High power measurement: Max. +20dBm (100mW).
• Built-in high-speed printer and large color display.
• Useful interfaces: 3.5-inch FDD, GP-IB, PCMCIA, RS-232C, keyboard, mouse, VGA and printer ports are provided.

仪器保证：

我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
