Tektronix/RSA6100A/实时频谱分析仪
- Tektronix/RSA6100A/实时频谱分析仪
- 欲购买或租赁Tektronix/RSA6100A/实时频谱分析仪？请在线咨询或拔打24小时电话：13715327187
 |
详细资料：
主要特点和优点
RSA6100A 系列6.2 GHz 和14 GHz 实时频谱分析仪
- 发现
-
- DPX" 频谱处理技术，使用基于发生频次的颜色等级画面，直观地理解随时间变化的RF 信号
- 革命性的DPX技术，可以显示最短24微秒的瞬态信号
- 触发
-
- 泰克独有的40 MHz 和110 MHz 频率模板触发(FMT)技术，在频域中发生任何变化时触发采集，根据事件简便地捕获瞬变RF 信号
- 触发频域中最短出现时间10.3微秒的瞬态信号
- 捕获
-
- 可以把高达110 MHz跨度内的所有信号捕获到存储器中
- 在110 MHz 带宽时高达1.7 s 的采集长度，可以全面分析测量期间的数据，而不需进行多次采集
- 分为6.2 GHz 和14 GHz 两个型号
- 在所有时间全面预选，无镜像，在任何跨度上提供高的动态范围
- 接口TekConnect 探头，进行RF 探测
- 分析
-
- 全面的时间相关多域显示，把时域、频域、相位和幅度方面的问题关联起来，在调试时更迅速地找到问题所在
- 功率测量和信号统计，帮助您检定器件和系统：ACLR, 多载波ACLR, 功率随时间变化, CCDF，OBW/EBW 和杂散测试
- 使用CISPR 和Mil/-6dB 滤波器及CISPR准峰值检测器和峰值检测器进行EMI 诊断

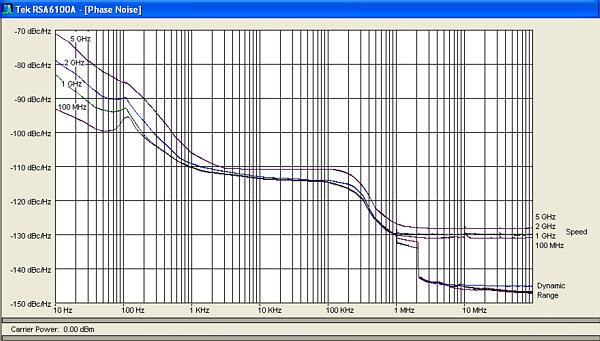

- 相噪和抖动测量(选项11)
- 高级测量套件(选项20) - 脉冲测量包括上升时间、脉宽和脉冲到脉冲相位，深入测试脉冲信号
- 通用数字调制分析(选项21)，提供了矢量信号分析仪功能
- 泰克OpenChoice®，把测量数据简便地传送到各种分析程序中，如Excel和MATLAB
应用
- 在频谱监测和监控中找到干扰信号和未知信号
- 检定雷达和脉冲式RF 信号
- 调试RF 器件、模块或系统
- 分析认知无线电系统和软件定义的无线电系统随时间变化的行为
- EMI诊断－ 提高设计通过一致性测试的信心
- 捕获多载波3G和4G 系统的矢量信号参数，进行离线分析
全面检定随时间变化的RF 信号
RSA6100A 系列可以帮助您简便地发现其它信号分析仪可能会漏掉的设计问题。革命性的DPX®频谱画面可以用颜色生动直观地显示频域中信号瞬变随时间变化情况，立即显示发生的问题，为你的设计提供足够信心，。其它信号分析仪是不可能提供这种生动的瞬变显示的。一旦使用DPX 发现了问题，RSA6100A 系列实时频谱分析仪(RTSA)可以触发事件，捕获变化的RF 事件的连续时间记录，在所有域中进行时间相关分析。您可以在一台仪器中，同时获得宽带矢量信号分析仪、频谱分析仪和实时频谱分析仪独有的触发- 捕获- 分析功能。
发现
通过采用DPXTM频谱处理引擎专利技术，频谱分析仪可以实时分析瞬变信号。由于可以执行每秒>48,000个频率变换，因此在频域中可以显示事件周期最短24 μs的瞬变。这较扫描分析技术改进了500倍。可以在位图显示中根据发生频率在事件上标出色码，以无可比拟的方式查看瞬变信号。

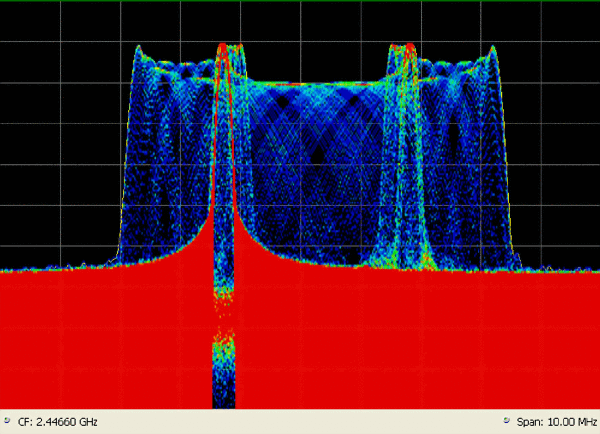

革命性的DPX频谱画面揭示了瞬变信号行为，帮助您发现不稳定性、毛刺和干扰。在这里，可以详细查看发生不频繁的瞬变信号。发生频次用颜色等级表示，不频繁的瞬变事件用蓝色表示(右面)，噪声背景用红色表示。
触发
泰克频率模板触发(FMT)专利技术选项02可以在高达110 MHz带宽中简便地捕获瞬变信号。可以简单地配置FMT，监测采集带宽内频率占用的所有变化。功率触发在时域及任何采集带宽内工作，可以监测越过用户设置的功率门限的瞬间时点。解析带宽可以与功率触发一起使用，限制频带，降低噪声。它为同步测试系统事件提供了两种外部触发。
捕获
可以捕获一次，然后进行多次测量，而不需重新捕获。采集带宽中的所有信息将记录到RSA6100A 系列的深存储器中。记录长度视选择的采集带宽而变化，在配备FMT/深存储选项02的情况下，在带宽为110 MHz 时记录长度是1.7 秒，带宽为1 MHz 时记录长度是81.9 秒，带宽为10 kHz时记录长度是1.46小时。它在直到110 MHz 的所有采集带宽中提供了73 dB 的无杂散动态范围 (选项110)，当存在大信号时可以实时捕获小信号。

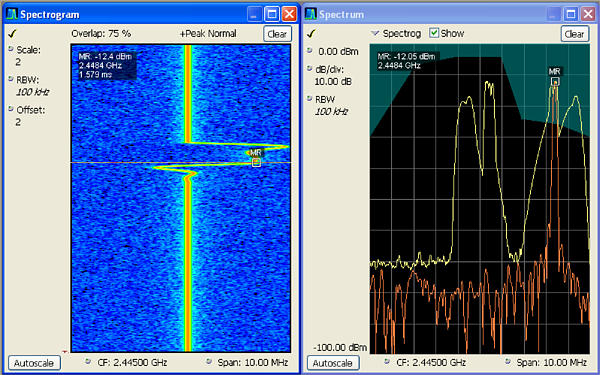

触发和捕获：频率模板触发功能监测域频变化，把任何超限信号捕获到存储器中。三维频谱图画面(左面的面板)显示了频率和幅度随时间变化情况。通过在频谱图中选择频谱超限触发FMT的时点，频域视图(右面的面板)会自动更新，在该时点上显示详细的频谱视图。
分析
RSA6100A 系列引入了多种分析功能，对处理元器件或RF 系统设计、集成和性能检验的工程师或处理网络、频谱监测或监控的运营工程师，提高了他们的工作效率。除频谱分析外，频谱图同时显示频率和幅度随时间变化情况。可以在频域、相位域、幅度域和调制域中进行时间相关测量。这特别适合包括跳频、脉冲特点、调制切换、稳定时间、带宽变化和间歇性信号的信号分析工作。
Windows XP环境提供数量不限的分析窗口，所有窗口都在时间上相关，使得多域分析变得更加简便，并可以更深入地查看信号行为。满足用户偏好(键盘、前面板、触摸屏和鼠标)的用户界面，使得新用户和资深用户都能轻松使用RSA6100A系列。
多种选项，针对特定应用订制RSA
RSA6100A 系列提供了多种选项，可以满足特定应用需求，包括雷达检定、通信系统设计、认识无线电或软件定义的无线电研究或频谱管理。
下列是标配和所有选件测试功能简介：
| 测量功能 | 测量项目 |
|---|---|
| 频谱分析仪测量 | 通道功率, 邻道功率, 多载波邻道功率泄漏比, 占用带宽, xdB Down, dBm/Hz 标记, dBc/Hz 标记 |
| 时域和统计测量 | RF I/Q 随时间变化, 功率随时间变化, 频率随时间变化, 相位随时间变化, CCDF, 峰值均值比 |
| 杂散信号搜索测量 | 最多20个频段范围, 用户可以在每个范围内选择检波器(峰值, 均值, 准峰值), 滤波器(RBW, CISPR, MIL)和VBW。线性或对数频率标度。绝对功率或相对于载波的测量和违规。以表格形式确定最多 999 个杂散 ，可以导出为CSV 格式 |
| 相噪和抖动测量(选项11) | 10 Hz-1 GHz 频率偏置范围, 对数频率标度。 曲线: 2 条: ± 峰值曲线, 均值曲线, 曲线平滑和平均 |
| 高级脉冲测量套件(选项20) | 上升时间, 下降时间, 脉宽, 脉冲峰值功率, 平均功率, 纹波, 脉冲重复间隔, 占空比, 脉冲到脉冲相 位, 脉冲到脉冲频率, 脉冲频率偏差, 脉冲频率误差, 脉冲相位偏差, 脉冲相位误差, 顶降, 脉冲时间, 趋势, 趋势FFT |
| 通用数字调制分析(选项21) | 误差矢量幅度(EVM) (RMS, 峰值, EMV对时间), 幅度误差(RMS, 峰值, 幅度误差对时间), 相位误差 (RMS, 峰值, 相位误差对时间), 原点偏置, 频率误差, 增益失衡, 正交误差, Rho, 星座图, 符号表 |
| RSAVu 分析软件 | W-CDMA, HSUPA. HSDPA, GSM/EDGE, CDMA2000 1x, CDMA2000 1xEV-DO, RFID, 相噪, 抖动, IEEE 802.11 a/b/g/n WLAN, IEEE 802.15.4 OQPSK (Zigbee), 音频分析 |
| 分析软件(RSAIQWIMAX) | 支持WiMAX 802.16-2004 和802.16.e 标准 |
| 分析软件(RSALTE) | 支持3GPP Release 8 LTE 标准 |
受益于RSA6100A 系列主要标配功能和选项的应用实例：
| 分析功能 | RF 调试 | 蜂窝, WLAN, 通用通信 |
雷达, 脉冲式信号 |
监控 频谱监测 |
|---|---|---|---|---|
| DPX™ 频谱处理 | X | X | X | X |
| 频率模板触发 (选项02) | X | X | X | X |
| 110 MHz 采集带宽 (选项110) | X | X | X | X |
| 频谱图 | X | X | X | X |
| 多域相关 | X | X | X | X |
| 使用用户自定义频率区域、 滤波器类型、极限搜索杂散信号 |
X | X | X | X |
| 准峰值检测器、CISPR 和-6 dB 滤波器， 用于EMI 诊断和调试 |
X | X | X | X |
| 内部前置放大器 (选项11) | X | X | X | X |
| 频率模板触发 (选项01) | X | X | X | X |
| 数字IQ 和模拟IF 输出(选项05) | X | X | X | X |
| 可拆卸硬盘 (选项06) | X | X | ||
| 相噪和抖动测量 (选项11) | X | X | X | X |
| 高级(脉冲式)信号分析 (选项20) | X | X | ||
| 通用数字调制分析(选项 21) | X | X | X | X |
| 110 MHz 采集带宽(选项 110) | X | X | X | X |
| RSAVu 分析软件 | X | X | X |

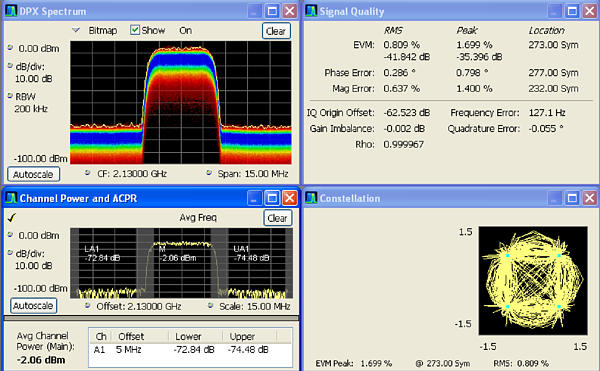

时间相关的多域视图可以以全新的方式查看传统分析解决方案不可能查看的设计或运维问题。这里在一个采集上执行ACLR 和矢量调制质量(选项21)测量，并结合使用DPXTM 频谱画面的连续监测功能。

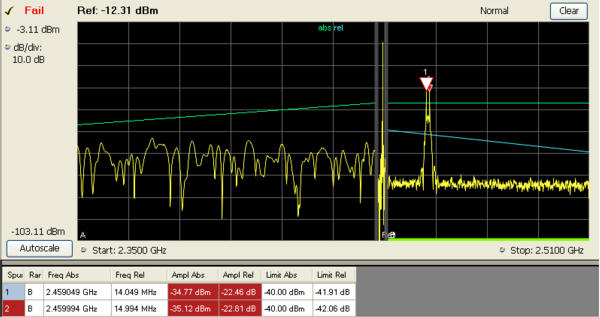

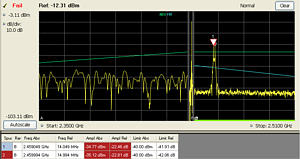

杂散信号搜索－用户可以配置杂散信号搜索测量，标出最多999个极限线路违规。

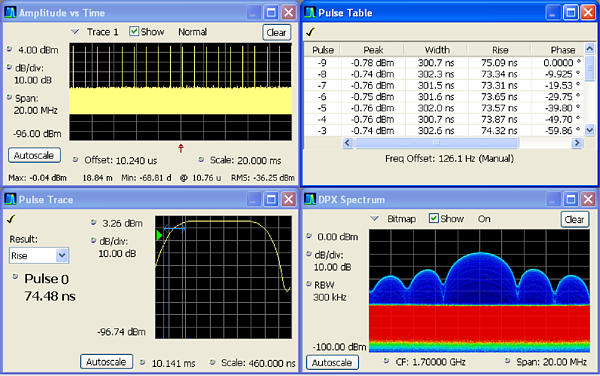

高级信号分析套件(选项20)中提供的脉冲测量功能：可以看到一个脉冲串(左上方)，并提供峰值功率、脉宽、上升时间和脉冲到脉冲相位等测量数据(右上方)。左下方是脉冲上升时间的详细视图，DPX 画面在右下方监视着频谱。
特点
频率相关特点
| 频率范围 | 9 kHz - 6.2/14 GHz (RSA6106A/ RSA6114A)。 |
| 初始中心频率设置精度 | 10 分钟预热后10-7 范围内。 |
| 中心频率设置分辨率 | 0.1 Hz。 |
| 频率标记读数精度 |
±(RE x MF + 0.001 x 跨度 + 2) Hz。 RE: 参考频率误差。 |
| 跨度精度 | ± 0.3% (自动模式)。 |
| 参考频率 | 在校准时初始精度:1 x 10-7 (在10分钟预热后)。 每天老化:1 x 10-9 (在运行30 天后)。 每年老化 :3 x 10-7 (在运行10 年后)。 温度漂移:2 x 10-8 (0 - 50℃)。 总频率误差:4 x 10-7 (校准后10 年内, 典型值)。 累积误差(温度+ 老化):4 x 10-7 (在校准后10 年内，典型值)。 |
| 参考输出电平 | >0 dBm(已经选择内部参考源)。 |
| 参考输出电平(环通) | 从Ext Ref In 到Ref 输出 为0 dB 标称增益, +15 dBm 最大输出。 |
| 外部参考输入频率 | 1 - 25 MHz (1 MHz 步进) + 1.2288 MHz, 4.8 MHz 和19.6608 MHz。 |
| 外部参考输入频率要求 | 必须位于声称频率输入的± 3x10-7 范围内。 杂散辐射在100 kHz 偏置范围内<-80 dBc。 输入电平范围: -10 dBm 到+6 dBm。 |
触发相关特点
| 承购方式 | 唯一或连续，自流或者触发 |
| 触发器事件来源 | 触发1 (前面)，触发器2/Gate (后方)，线 |
| 触发器类型 | 水平或频率面具 |
| 触发器设置 | 触发位置settable从0到100%总承购 长度 |
| 触发器组合逻辑 | Trig 1和Trig 2/Gate也许被定义作为触发器事件 |
| 触发器延迟 | |
| 范围 | 20 ns到60 s |
| 决议 | 20 ns |
| 不确定性 | ±20 ns |
功率电平触发
| 平实范围 | 0 dB到- 100 dB从假定水准基点 |
| 准确性 | (为触发器水平>30 dB在噪声地板， 10%到 90%之上信号电平) |
| ±0.5 dB (平实≥ - 50 dB从假定水准基点) | |
| ±1.5 dB (从 <- 50 dB对- 70 dB从 假定水准基点) | |
| 触发器带宽范围 | (在最大承购BW) |
| 4千赫到20兆赫+大开(标准) | |
| 11千赫到60兆赫+大开(选择110) | |
| 触发器位置时间不确定性 | |
| 40兆赫承购BW， 20兆赫BW ： | 不确定性= ±10 ns |
| 110兆赫承购BW， 60兆赫BW (Opt。 110): | 不确定性= ±3.3 ns |
| 触发器重整军备时间，极小值(快速框架`在’) | |
| 10兆赫承购BW | ≤ 25 μS |
| 40兆赫承购BW | ≤10 μS |
| 110兆赫承购BW (Opt。 110) | ≤ 5 μS |
频率面具触发器(Opt. 02)
| 面具形状 | 用户定义 |
| 面具点水平分辨 | <0.2%间距 |
| 平实范围 | 0 dB到- 80 dB从假定水准基点 |
| 平实Accuracy*1 | |
| 0到- 50 dB从假定水准基点： | ± (如果频率响应+ 1.0 dB) |
| - 50 dB到- 70 dB从假定水准基点： | ± (如果频率响应+ 2.5 dB) |
| 间距范围 | 100赫兹到40兆赫(选择02) |
| 100赫兹到110兆赫(选择02 +选择110) | |
| 极小的事件期间为100%触发器的 可能性 | (在最大承购带宽) |
| 30.7 μSec (10.3 μSec， Opt。 02 + Opt。 110) | |
| 持续较不比极小的事件期间规格的事件 导致被贬低的频率面具触发器准确性 | |
| 触发器位置不确定性 | |
| 间距= 40兆赫 | ±12.8 μS |
| 间距= 110兆赫 | ±5.12 μS (选择02 +选择110) |
| Mask Shape | User-defined |
| Mask Point Horizontal Resolution | <0.2% of span |
| Level Range | 0 dB to –80 dB from reference level |
| Level Accuracy*1 | |
| 0 to –50 dB from reference level: | ±(IF Frequency Response + 1.0 dB) |
| –50 dB to –70 dB from reference level: | ±(IF Frequency Response + 2.5 dB) |
| Span Range | 100 Hz to 40 MHz (Option 02) |
| 100 Hz to 110 MHz (Option 02 + Option 110) | |
| Minimum Event Duration for 100% Probability of Trigger | (at maximum acquisition bandwidth) |
| 30.7 μSec (10.3 μSec, Opt. 02 + Opt. 110) | |
| Events lasting less than minimum event duration specification will result in degraded Frequency Mask Trigger accuracy | |
| Trigger Position Uncertainty | |
| Span = 40 MHz | ±12.8 μS |
| Span = 110 MHz | ±5.12 μS (Option 02 + Option 110) |
*1 for masks >30 dB above noise floor
| 外部触发1 | |
| 门限电压 | –2.5 V to +2.5 V |
| Level Setting Resolution | 0.01 V |
| Trigger Position Timing Uncertainty (50 Ω input impedance) | |
| 40 MHz acquisition BW, 40 MHz Span: | Uncertainty = ±20 ns |
| 110 MHz acquisition BW, 110 MHz Span (Opt 110): | Uncertainty = ±12 ns |
| Input Impedance | Selectable 50 Ω/5 kΩ Impedance (nominal) |
| 外部触发2 | |
| Threshold Voltage | Fixed, TTL |
| Input Impedance | 10 kΩ (nominal) |
| Trigger State Select | High, low |
| 触发输出 | |
| Voltage (Output Current <1 mA) | High: >2.0 V; Low: <0.4 V (LVTTL) |
捕获相关特点
| 实时采集带宽 | 40 MHz (110 MHz, Opt. 110) |
| 模数转换器 | 100 MS/s 14 bit (Optional 300 MS/s, 12 bit, Opt. 110) |
| 采集存储器容量 | 256 MB (1 GB, Opt. 02) |
| 最小采集长度 | 2 Samples |
| 采集长度设置分辨率 | 1 Sample |
| 快速帧采集模式 | > 64,000 Records can be stored in a single acquisition (for Pulse Measurements and Spectrogram Analysis) |
存储深度(时间)和最小时域分辨率
| 采集带宽 |
采集带宽取样速率 (对I 和Q)) |
采集 时间 |
采集 时间 (选项 02) |
最小 时间 分辨率 |
|---|---|---|---|---|
| 110 MHz (Opt. 110) | 150 MS/s | 0.426 s | 1.706 s | 6.6667 ns |
| 60 MHz (Opt. 110) | 75 MS/s | 0.852 | 3.413 | 13.33 ns |
| 40 MHz | 50 MS/s | 1.28 s | 5.12 s | 20 ns |
| 20 MHz | 25 MS/s | 2.56 s | 10.2 s | 40 ns |
| 10 MHz | 12.5 MS/s | 5.12 s | 20.5 s | 80 ns |
| 5 MHz | 6.25 MS/s | 10.2 s | 41.0 s | 160 ns |
| 2 MHz*2 | 3.125 MS/s | 10.2 s | 41.0 s | 320 ns |
| 1 MHz | 1.56 MS/s | 20.5 s | 81.9 s | 640 ns |
| 500 kHz | 781 kS/s | 41.0 s | 164 s | 1.28 μs |
| 200 kHz | 390 kS/s | 81.9 s | 328 s | 2.56 μs |
| 100 kHz | 195 kS/s | 164 s | 655 s | 5.12 μs |
| 50 kHz | 97.6 kS/s | 328 s | 1310 s | 10.24 μs |
| 20 kHz | 48.8 kS/s | 655 s | 2620 s | 20.48 μs |
| 10 kHz | 24.4 kS/s | 1310 s | 5240 s | 40.96 μs |
| 5 kHz | 12.2 kS/s | 2620 s | 10500 s | 81.92 μs |
| 2 kHz | 3.05 kS/s | 10500 s | 41900 s | 328 μs |
| 1 kHz | 1.52 kS/s | 21000 s | 83900 s | 655 μs |
| 500 Hz | 762 S/s | 41900 s | 168000 s | 1.31 ms |
| 200 Hz | 381 S/s | 83900 s | 336000 s | 2.62 ms |
| 100 Hz | 190 S/s | 168300 s | 671000 s | 5.24 ms |
*2在≤2 MHz的跨度中，会存储分辨率更高的数据，但会减少采集时间。.
分析相关特点
| 按域划分的视图 | 视图 |
|---|---|
| Power and Frequency Measurements | Channel Power, Adjacent Channel Power, Multi Carrier Adjacent Channel Power/Leakage Ratio, Occupied Bandwidth, xdB Down, dBm/Hz Marker, dBc/Hz Marker |
| 时间 Domain and Statistical Measurements | RF I/Q vs. 时间, Power vs. 时间, Frequency vs. 时间, Phase vs. 时间, CCDF, Peak-to-Average Ratio |
| Phase Noise and Jitter Measurements (Opt. 11) |
10 Hz to 1 GHz Frequency Offset range, Log Frequency Scale Traces: 2: ± Peak Trace, Average Trace, Trace Smoothing and Averaging, |
| Spur Search Measurement | Up to 20 ranges, User-selected detectors(peak, average, QP), filters (RBW, CISPR, MIL) and VBW in each range. Measurements and violations in absolute power or relative to a carrier. Up to 999 violations identified in tabular form for export in CSV format |
| Advanced Measurements Suite (Option 20) | Rise 时间, Fall 时间, Pulse Width, Pulse Peak Power, Average Power, Ripple, Pulse Repetition Interval, Duty Cycle, Pulse-Pulse Phase, Pulse-Pulse Frequency, Pulse Frequency Deviation, Pulse Frequency Error, Pulse Phase Deviation, Pulse Phase Error, Droop, Trend, FFT of Trend |
| General Purpose Digital Modulation Analysis (Option 21) | Error Vector Magnitude (EVM) (RMS, Peak, EVM vs. 时间), Modulation Error Ratio (MER), Magnitude Error (RMS, Peak, Mag Error vs. 时间), Phase Error (RMS, Peak, Phase Error vs. 时间), Origin Offset, Frequency Error, Gain Imbalance, Quadrature Error, Rho, Constellation, Symbol Table |
| RSAVu Analysis Software | W-CDMA, HSUPA. HSDPA, GSM/EDGE, CDMA2000 1x, CDMA2000 1xEV-DO, RFID, Phase Noise, Jitter, IEEE 802.11 a/b/g/n WLAN, IEEE 802.15.4 OQPSK (Zigbee) |
| Analysis SW (RSAIQWIMAX) | WiMAX 802.16-2004 and 802.16.e standards support |
| Displays by Domain | Views |
|---|---|
| Frequency |
Spectrum (Amplitude vs. Frequency) DPX™ Spectrum Display (Live RF Color-Graded Spectrum) Spectrogram (Amplitude vs. Frequency over 时间) Phase Noise (Phase Noise and Jitter Measurement) (Opt. 11) |
| 时间 and Statistics |
Frequency vs. 时间 Amplitude vs. 时间 Phase vs. 时间 RF I&Q vs. 时间 时间 Overview CCDF Peak-to-Average-Ratio |
| Advanced Measurements Suite (opt. 20) |
Pulse Results Table Pulse Trace (Selectable by pulse number) Pulse Statistics (Trend of Pulse Results and FFT of Trend) |
| Digital Demod (Option 21) |
Constellation diagram EVM vs. 时间 Symbol Table (Binary or Hexadecimal) Magnitude and Phase error versus 时间, and signal quality |
Spectrum Display Traces, Detectors, and Functions
| Traces | Three traces + 1 math waveform + 1 trace from spectrogram for spectrum display |
| Detector | Peak, – peak, average |
| Trace Functions | Normal, Average, Max Hold, Min Hold |
| Spectrum Trace Length | 801, 2401, 4001, 8001 or 10401 points |
RF Performance
Frequency
| Frequency Range | 9 kHz to 6.2/14 GHz (RSA6106A/RSA6114A) |
| Initial Center Frequency Setting Accuracy | Within 10-7 after 10 minute warm-up |
| Center Frequency Setting Resolution | 0.1 Hz |
| Frequency Marker Readout Accuracy | ±(RE × MF + 0.001 × Span + 2) Hz |
| RE | Reference Frequency Error |
| MF | Marker Frequency (Hz) |
| Span Accuracy | ±0.3% (Auto mode) |
| Reference Frequency | |
| Initial Accuracy at Cal | 1 x 10-7 (after 10 min. warmup) |
| Aging per Day | 1 x 10-9 (after 30 days of operation) |
| Aging per 10 Years | 3 x 10-7 (after 10 years of operation) |
| Temperature Drift | 2 x 10-8 (0 to 50 °C) |
| Cumulative Error (Temperature + Aging) | 4 x 10-7 (within 10 years after calibration, typical) |
| Reference Output Level | >0 dBm (internal reference selected) |
| Reference Output Level (Loop-through) | 0 dB nominal gain from Ext Ref In to Ref Output, +15 dBm max. output |
| External Reference Input Frequencies | 1 to 25 MHz (1 MHz steps) + 1.2288 MHz, 4.8 MHz, 19.6608 MHz |
| External Reference Input Frequency Requirements | Must be within ±3 × 10-7 of stated frequency input |
| Spurious | < –80 dBc within 100 kHz offset |
| Input Level Range | –10 dBm to +6 dBm |
Bandwidth
| Resolution Bandwidth | |
| Resolution Bandwidth Range (Spectrum Analysis) | 1 Hz to 5 MHz (1, 2, 3, 5 sequence, auto-coupled), or user-selected (arbitrary) |
| Resolution Bandwidth Shape | 1 Hz to 5 MHz - Approximately Gaussian, shape factor 4.1:1 (60:3 dB) ±10%, typical |
| Resolution Bandwidth Accuracy | 1 Hz to 5 MHz ±1% (Auto-coupled RBW Mode) |
| Alternative Resolution Bandwidth Types | Kaiser window (RBW), -6 dB Mil, CISPR, Blackman-Harris 4B Window, Uniform (none) Window, Flat-Top (CW Ampl.) Window, Hanning Window |
| Video Bandwidth (auto coupled) | |
| Video Bandwidth Range | 1 Hz to 5 MHz plus wide open |
| RBW/VBW Maximum | 10,000:1 |
| RBW/VBW Minimum | 1:1 plus wide open |
| Resolution | 5% of entered value |
| Accuracy (typical) | ±10% |
| 时间 Domain Bandwidth | |
| 时间 Domain Bandwidth Range | At least 1/10 to 1/10,000 of Acquisition Bandwidth, 1 Hz Minimum |
| 时间 Domain BW Shape | ≤10 MHz, approximately Gaussian, shape factor 4.1:1(60:3 dB), ±10% typical |
| 20 MHz (60 MHz, Opt 110), shape factor <2.5:1 (60:3 dB) typical | |
| 时间 Domain Bandwidth Accuracy | 1 Hz to 20 MHz, and (>20 MHz to 60 MHz Opt 110), ±10% |
Minimum Settable Spectrum Analysis RBW vs. Span
| Frequency Span | RBW |
|---|---|
| >10 MHz | 100 Hz |
| >1 MHz to 10 MHz | 10 Hz |
| ≤1 MHz | 1 Hz |
DPX™ Digital Phosphor Spectrum Processing
| Spectrum Processing Rate | >48,828/s |
| Trace Processing | Color-graded bit map, +Peak, –Peak, Average |
| Minimum Signal Duration for 100% Probability of Detection (Max-hold On) | 31 μs (24 μs Opt. 110) |
| Span Range | 100 Hz to 40 MHz (110 MHz with Opt. 110) |
| Resolution BW Accuracy | 7% |
Resolution BW Range vs. Span (DPX™)
| Span | RBW (Min) |
|---|---|
| 110 MHz | 600 kHz |
| 55 MHz | 300 kHz |
| 40 MHz | 200 kHz |
| 20 MHz | 100 kHz |
| 10 MHz | 50 kHz |
| 5 MHz | 25 kHz |
| 2 MHz | 13 kHz |
| 1 MHz | 7 kHz |
| 500 kHz | 4 kHz |
| 200 kHz | 2 kHz |
| 100 kHz | 800 Hz |
| 50 kHz | 400 Hz |
| 20 kHz | 200 Hz |
| 10 kHz | 100 Hz |
| 5 kHz | 50 Hz |
| 2 kHz | 13 Hz |
| 1 kHz | 7 Hz |
| 500 Hz | 4 Hz |
| 200 Hz | 2 Hz |
| 100 Hz | 1 Hz |
Stability
Residual FM - <2 Hzp-p in 1 second (95% confidence, typical)
Phase Noise Sidebands, dBc/Hz at Specified Center Frequency (CF)
| Offset | CF = 1 GHz | CF = 2 GHz | CF = 6 GHz | CF = 10 GHz (RSA6114A) | |
|---|---|---|---|---|---|
| Spec | Typical | Typical | Typical | Typical | |
| 100 Hz | -80 | -86 | -80 | -70 | -64 |
| 1 kHz | -100 | -106 | -106 | -96 | -91 |
| 10 kHz | -106 | -110 | -110 | -107 | -106 |
| 100 kHz | -107 | -113 | -111 | -107 | -106 |
| 1 MHz | -128 | -134 | -133 | -132 | -132 |
| 6 MHz | -134 | -142 | -142 | -142 | -142 |
| 10 MHz | -134 | -142 | -142 | -142 | -142 |
Typical phase noise performance as measured by Opt. 11
Amplitude
(Specifications excluding mismatch error)
| Measurement Range | Displayed average noise level to maximum measurable input |
| Input Attenuator Range | 0 dB to 75 dB, 5 dB step |
| Maximum Safe Input Level | |
| Average Continuous (RF ATT ≥10 dB, Pre-amp OFF) | +30 dBm |
| Average Continuous (RF ATT ≥10 dB, Pre-amp ON) | +20 dBm |
| Pulsed RF (RF ATT ≥ 30 dB, PW <5 μs, 0.5% Duty Cycle) | 75 W |
| Maximum Measurable Input Level | |
| Average Continuous (RF ATT: Auto) | +30 dBm |
| Pulsed RF (RF ATT: Auto, PW <5 μs, 0.5% Duty Cycle) | 75 W |
| MAX DC Voltage | ±40 V |
| Log Display Range | 0.01 dBm/div to 20 dB/div |
| Display Divisions | 10 divisions |
| Display Units | dBm, dBmV, Watts, Volts, Amps, dBuW, dBuV, dBuA, dBW, dBV, dBV/m, and dBA/m |
| Marker Readout Resolution, dB units | 0.01 dB |
| Marker Readout Resolution, Volts units | Reference level dependent, as small as 0.001 μV |
| Reference Level Setting Range | 0.1 dB step, –170 dBm to +50 dBm (minimum ref. level -50 dBm at center frequency <80 MHz) |
| Level Linearity | ±0.1 dB (0 to –70 dB from Reference Level) |
Frequency Response
| 18 °C to 28 °C, Atten.= 10 dB, Preamp Off | |
| 10 MHz - 3 GHz | ±0.5 dB |
| >3 GHz - 6.2 GHz | ±0.8 dB |
| > 6.2 GHz - 14 GHz (RSA6114A) | ±1.0 dB |
| 5 °C to 50 °C, All Attenuator settings (typical) | |
| 9 kHz - 3 GHz | ±0.7 dB |
| >3 GHz - 6.2 GHz | ±0.8 dB |
| > 6.2 GHz - 14 GHz (RSA6114A) | ±2.0 dB |
| Preamp (Opt. 01) ON (Att.= 10 dB) | |
| 10 MHz - 3 GHz | ±0.7 dB |
| Absolute Amplitude Accuracy at Calibration Point (100 MHz, –20 dBm signal, 10 dB ATT, 18 °C to 28 °C) | ±0.31 dB |
| Input Attenuator Switching Uncertainty | ±0.2 dB |
| Absolute Amplitude Accuracy at Center Frequency, 95% confidence*3 (typical) | |
| 10 MHz to 3 GHz | ±0.5 dB |
| 3 GHz to 6.2 GHz | ±0.8 dB |
| 6.2 GHz to 14 GHz | ±1.5 dB |
| VSWR (typical) | (Att = 10 dB, Preamp OFF, CF set within 200 MHz of VSWR test frequency) |
| 10 MHz to 4 GHz | <1.6:1 |
| 4 GHz to 6.2 GHz | <1.8:1 |
| 6.2 GHz to 14 GHz (RSA6114A only) | <1.9:1 |
| VSWR with Preamp (typical) | (Att = 10 dB, Preamp ON, CF set within 200 MHz of VSWR test frequency |
| 10 MHz to 3 GHz | <1.9:1 |
*3 18 °C to 28 °C, Reference level ≤–15 dBm, Attenuator Auto-Coupled, signal level –15 dBm to –50 dBm. 10 Hz ≤ RBW ≤ 1 MHz, after Alignment performed)
Noise and Distortion
3rd Order Inter-modulation Distortion*4
| Frequency | 3rd order IM | 3rd Order Intercept | 3rd Order Intercept (typical) |
|---|---|---|---|
| 2.130 GHz | <–80 dBc | +15 dBm | +17 dBm |
*4 Each signal level –25 dBm, Ref Level –20 dBm, Attenuator = 0 dB, 1 MHz tone separation.
Note: 3rd order intercept point is calculated from 3rd order intermodulation performance.
2nd Harmonic Distortion*5
| Frequency | 2nd Harmonic Distortion, Typical |
|---|---|
| 10 MHz - 3.1 GHz | <–80 dBc |
| >3.1 GHz - 7 GHz (RSA6114 Only) | <–80 dBc |
*5 –40 dBm at RF input, Attenuator = 0, Preamp Off, typical
Displayed Average Noise Level*6, Preamp OFF
| Frequency | Specification | Typical |
|---|---|---|
| 9 kHz - 10 MHz | –97 dBm/Hz | –100 dBm/Hz |
| >10 MHz - 100 MHz | –147 dBm/Hz | –149 dBm/Hz |
| >100 MHz - 2.3 GHz | –149 dBm/Hz | –151 dBm/Hz |
| >2.3 GHz - 4 GHz | –147 dBm/Hz | –149 dBm/Hz |
| >4 GHz - 6.2 GHz | –143 dBm/Hz | –145 dBm/Hz |
| RSA6114A Only | ||
| 4 GHz - 7 GHz | –143 dBm/Hz | –145 dBm/Hz |
| >7 GHz - 14 GHz | –135 dBm/Hz | –137 dBm/Hz |
*6 Measured using 1 kHz RBW, 100 kHz Span, 100 Averages, Minimum Noise Mode, Input terminated
Displayed Average Noise Level*6, Preamp ON (Opt. 01)
| Frequency | Specification | Typical |
|---|---|---|
| 10 MHz - 80 MHz | –160 dBm/Hz | –170 dBm/Hz |
| >80 MHz - 1 GHz | –165 dBm/Hz | –170 dBm/Hz |
| 1 GHz - 2 GHz | –166 dBm/Hz | –170 dBm/Hz |
| 2 GHz - 3 GHz | –164 dBm/Hz | –170 dBm/Hz |
Residual Response*7
| Frequency | Spec |
|---|---|
| 40 MHz - 200 MHz | –90 dBm |
| >200 MHz - 6.2 GHz | –95 dBm |
| >6.2 GHz - 14 GHz (RSA6114A) | –95 dBm (typical) |
*7 Input Terminated, RBW = 1 kHz, Atten = 0 dB
Image Response*8
| Frequency | Spec |
|---|---|
| 9 kHz - 6.2 GHz | <–80 dBc |
| 6.2 GHz - 8 GHz (RSA6114A) | <–80 dBc |
| >8 GHz to 14 GHz (RSA6114A) | <–76 dBc |
*8 Ref = –30 dBm, Atten = 10 dB, RF input Level = –30 dBm, RBW = 10 Hz
Spurious Response with Signal*9
| Frequency |
Span ≤40 MHz, swept spans >40 MHz |
Option 110 40 MHz < span ≤ 110 MHz | ||
|---|---|---|---|---|
| Specification | Typical | Specification | Typical | |
| 10 MHz – 6.2 GHz | –73 dBc | –78 dBc | –73 dBc | –75 dBc |
| ≥6.2 GHz – 14 GHz (RSA6114A) | –70 dBc | –75 dBc | –70 dBc | –75 dBc |
*9 RF input level, –15 dBm, Atten = 10 dB, Offset ≥400 kHz, Mode: Auto. Input signal at center frequency. Performance level for signals offset from center frequency typically the same.
Spurious response with signal at 4.75 GHz – <-57 dBc (RF input level, -30 dBm) - <–57 dBc (RF input level, -30 dBm)
Adjacent Channel Leakage Ratio Dynamic Range*10
| Signal Type, Measurement Mode | ACLR, Typical | |
|---|---|---|
| Adjacent | Alternate | |
| 3GPP Downlink, 1 DPCH | ||
| Uncorrected | –70 dB | –70 dB |
| Noise Corrected | –79 dB | –79 dB |
| 3GPP TM1 64 channel | ||
| Uncorrected | –69 dB | –69 dB |
| Noise Corrected | –78 dB | –78 dB |
*10 Measured with test signal amplitude adjusted for optimum performance. (CF = 2.13 GHz,)
IF Frequency Response and Phase Linearity*11
| Frequency Range | Specification | Typical (rms) | |
|---|---|---|---|
| Freq (GHz) | Acq. Bandwidth | Specification | Amplitude/Phase |
| 0.01 - 3.0*12 | ≤300 kHz | ±0.20 dB | 0.05 dB/0.5° |
| 0.03 - 3.0 | ≤40 MHz | ±0.50 dB | 0.18 dB/1.0° |
| >3 - 6.2*12 | ≤300 kHz | ±0.20 dB | 0.05 dB/0.5° |
| >3 - 6.2 | ≤40 MHz | ±0.50 dB | 0.26 dB/1.0° |
| >6.2 - 14 (RSA6114A) | ≤300 kHz | ±0.20 dB | 0.05 dB/1.0° |
| >6.2 - 14 (RSA6114A) | ≤40 MHz | ±0.80 dB | 0.40 dB/1.0° |
| Option 110 | |||
| 0.07 – 3.0 | ≤80 MHz | ±0.90 dB | 0.40 dB/1.5° |
| 0.07 - 3.0 | ≤110 MHz | ±0.90 dB | 0.40 dB/2.0° |
| >3 - 6.2 | ≤80 MHz | ±0.90 dB | 0.60 dB/1.5° |
| >3 - 6.2 | ≤110 MHz | ±0.90 dB | 0.60 dB/2.0° |
| >6.2 - 14 (RSA6114A) | ≤80 MHz | ±1.5 dB | 0.70 dB/1.5° |
| >6.2 to 14 (RSA6114A) | ≤110 MHz | ±1.5 dB | 1.0 dB/2.25° |
*11 Amplitude flatness and phase deviation over the capture BW, includes RF frequency response. Attenuator setting: 10 dB.
*12 High Dynamic Range Mode Selected.
Advanced Measurement Suite (Opt. 20)
| Measurements | Average On Power, Peak Power, Average Transmitted Power, Pulse Width, Rise 时间, Fall 时间, Repetition Interval (seconds), Repetition Interval (Hz), Duty Factor (%), Duty Factor (ratio), Ripple, Droop, Pulse-Pulse Frequency Difference, Pulse-Pulse Phase Difference, RMS Frequency Error, Max Frequency Error, RMS Phase Error, Max Phase Error, Frequency Deviation, Phase Deviation, 时间Stamp |
| Minimum Pulse Width for Detection | 150 ns (standard), 50 ns (Opt. 110 |
| Number of pulses | 1 to 10,000 |
| System Rise 时间 (typical) | <25 ns (standard), <10 ns (Opt. 110) |
| Pulse Measurement Accuracy | Signal Conditions: Unless otherwise stated, Pulse Width > 450 ns (150 ns, Opt. 110), S/N Ratio ≥30 dB, Duty Cycle 0.5 to 0.001, temperature 18 °C to 28 °C |
| Measurement | Accuracy (Typical) |
|---|---|
| Average ON Power*13 | ±0.3 dB + Absolute Amplitude Accuracy |
| Average Transmitted Power*13 | ±0.4 dB + Absolute Amplitude Accuracy |
| Peak Power*13 | ±0.4 dB + Absolute Amplitude Accuracy |
| Pulse Width | ±3% of reading |
| Duty Factor | ±3% of reading |
Frequency and Phase Error Referenced to Non-chirped Signal
At stated frequencies and measurement bandwidths*14, 95% confidence.
| CF 2 GHz | CF: 10 GHz | |||||
|---|---|---|---|---|---|---|
| Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | |
| BW: 20 MHz | ± 50 kHz | ± 100 kHz | ± 1.7 ◦ | ± 100 kHz | ± 200 kHz | ± 3.2 ◦ |
| BW: 40 MHz | ± 50 kHz | ± 100 kHz | ± 1.7 ◦ | ± 125 kHz | ± 200 kHz | ± 3.7 ◦ |
| BW: 60 MHz (Opt. 110) | ± 200 kHz | ± 350 kHz | ± 1.9 ◦ | ± 450 kHz | ± 1.0 MHz | ± 4 ◦ |
| BW: 110 MHz (Opt. 110) | ± 300 kHz | ± 550 kHz | ± 2 ◦ | ± 700 kHz | ± 1.3 MHz | ± 5 ◦ |
Frequency and Phase Error Referenced to a Linear Chirp
At stated frequencies and measurement bandwidths*14, 95% confidence.
| CF 2 GHz | CF: 10 GHz | |||||
|---|---|---|---|---|---|---|
| Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | |
| BW: 20 MHz | ± 200 kHz | ± 100 kHz | ± 2.2 ◦ | ± 300 kHz | ± 200 kHz | ± 4 ◦ |
| BW: 40 MHz | ± 300 kHz | ± 100 kHz | ± 2.2 ◦ | ± 400 kHz | ± 250 kHz | ± 5 ◦ |
| BW: 60 MHz (Opt. 110) | ± 900 kHz | ± 550 kHz | ± 2.4 ◦ | ± 1.3 MHz | ± 1.1 MHz | ± 6.5 ◦ |
| BW: 110 MHz (Opt. 110) | ± 1.9 MHz | ± 650 kHz | ± 2.5 ◦ | ± 2.0 MHz | ± 1.6 MHz | ± 7.0 ◦ |
*13 Pulse width >300 ns (100 ns, Opt. 110).
*14 Pulse ON power ≥ –20 dBm, signal peak at Reference Level, Attenuator = Auto, tmeas – treference ≤10 ms, Frequency Estimation: Manual. Pulse-to-Pulse Measurement 时间 position excludes the beginning and ending of the pulse extending for a 时间 = (10/Measurement BW) as measured from 50% of the t(rise) or t(fall).Absolute Frequency Error determined over center 50% of pulse.
Note: Signal type: Linear Chirp, Peak-to-peak Chirp Deviation: ≤0.8 *Measurement BW
Digital Modulation Analysis (Option 21)
| Modulation Formats | BPSK, QPSK, 8PSK, 16QAM, 32 QAM, 64QAM, 128 QAM, 256QAM, MSK, GMSK, π/4DQPSK, DQPSK, D8PSK |
| Analysis Period | Up to 80,000 Samples |
| Filter Types | |
| Measurement filters | Square root raised cosine, raised cosine, Gaussian, rectangular, IS-95, IS-95 EQ, none |
| Reference filters | Raised cosine, Gaussian, rectangular, IS-95, none |
| Alpha/B*T range | 0.001 to 1, 0.001 step |
| Measurements | Constellation, Error Vector Magnitude (EVM) vs. 时间, Modulation Error Ratio (MER), Magnitude Error vs. 时间, Phase Error vs. 时间, Signal Quality, Symbol Table |
| Symbol Rate Range | 1 kSymbols/s to 100 MSymbols/s (Modulated signal must be contained entirely within acquisition BW of RSA6100A) |
Demodulation Accuracy
Digital (Option 21)
QPSK Residual EVM (Typical)*15
| Symbol Rate | Residual EVM |
|---|---|
| 100 kSymbols/s | <0.6% |
| 1 MSymbol/s | <0.7% |
| 10 MSymbol/s | <1.0% |
| 30 MSymbol/s | <3.0% |
| 80 MSymbols/s (Opt. 110) | <3.0% |
*15 锎= 2千兆赫，测量过滤器=根被上升的余弦，参考过滤器=提高了余弦，分析长度= 200个标志
256 QAM Residual EVM (Typical)*16
| Symbol Rate | Residual EVM |
|---|---|
| 10 MSymbol/s | <1.0% |
| 30 MSymbol/s | <3.0% |
| 80 MSymbols/s (Opt. 110) | <3.0% |
*16 锎= 2千兆赫，测量过滤器=根提高了余弦，参考过滤器=被上升的余弦，分析长度= 400个标志
输入和输出
| 面板 | |
| RF输入连接器 | N类型， 50 Ω |
| 触发器 | BNC，高>2.0 v，低： <0.4 v，输出电流 1 mA (LVTTL) |
| 触发器 | BNC， 50 Ω/5 KΩ阻抗(有名无实)， ±5 v最大输入， - 2.5 V到+2.5 V触发器水平 |
| USB口岸 | 1个USB 2.0， 1个USB 1.1 |
| 音频 | 演讲人 |
| 后面板 | |
| 模拟IF 和数字IQ 输出(选项05) | |
| 模拟IF 输出 (选项05) | |
| 频率 | 500 MHz (±1 MHz based on center frequency selection) |
| 输出电平 | 0 to –10 dBm for peak signal level of –20 dBm at RF mixer (typical) |
| Filter Control | Wide open (square top) or 60 MHz Gaussian |
| Bandwidth (Wide Open) | >150 MHz (typical) |
| Bandwidth (Gaussian) | 60 MHz, Gaussian to –12 dB |
| 数字IQ 输出 ( (选项05) | |
| 连接器类型 | MDR (3M) 50 pin x 2 |
| 数据输出 | Data is corrected for amplitude and phase response in real 时间 |
| I data | 16 bit LVDS; Q data: 16 bit LVDS |
| 控制 输出 | Clock: LVDS, MAX 50 MHz (150 MHz, 选项110) DV (Data Valid), MSW (Most Significant Word) indicators, LVDS |
| 控制 Input | IQ data 输出 enabled, connecting GND enables 输出 of IQ data |
| 时钟上升沿到数据转换时间(保持时间) | 8.4 ns (typical, standard), 1.58 ns (typical, 选项110) |
| 数据转换到时钟上升沿(建立时间) | 8.2 ns (typical, standard), 1.54 ns (typical, 选项110) |
| 10 MHz REF OUT | 50 Ω, BNC, >0 dBm |
| 外部 REF IN | 50 Ω, BNC, –10 dBm - +6 dBm, 1 MHz to 25 MHz in 1 MHz steps, plus 1.2288 MHz, 4.8 MHz, and 19.6608 MHz |
| 外部 REF IN 参考输入频率精度 | ≤ ±0.3 ppm |
| TRIG 2/Gate IN | BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V |
| GPIB Interface | IEEE 488.2 |
| LAN 以太网接口 | RJ45, 10/100/1000 Base-T |
| USB 端口 | USB 2.0, two ports |
| VGA 输出 | VGA compatible, 15 DSUB |
| 音频输出 | 3.5 mm headphone jack |
| 噪声源驱动器 | BNC, +28 V, 140 mA (nominal) |
| Front Panel | |
| RF Input Connector | N type, 50 Ω |
| Trigger Out | BNC, High >2.0 V, Low: <0.4 V, output current 1 mA (LVTTL) |
| Trigger In | BNC, 50 Ω/5 KΩ impedance (nominal), ±5 V Max Input, –2.5 V to +2.5 V trigger level |
| USB Ports | 1 USB 2.0, 1 USB 1.1 |
| Audio | Speaker |
| Rear Panel | |
| Analog IF and Digital IQ Output (Opt. 05) | |
| Analog IF Output (Opt. 05) | |
| Frequency | 500 MHz (±1 MHz based on center frequency selection) |
| Output Level | 0 to –10 dBm for peak signal level of –20 dBm at RF mixer (typical) |
| Filter Control | Wide open (square top) or 60 MHz Gaussian |
| Bandwidth (Wide Open) | >150 MHz (typical) |
| Bandwidth (Gaussian) | 60 MHz, Gaussian to –12 dB |
| Digital IQ Output (Opt. 05) | |
| Connector Type | MDR (3M) 50 pin x 2 |
| Data Output | Data is corrected for amplitude and phase response in real 时间 |
| I data | 16 bit LVDS; Q data: 16 bit LVDS |
| Control Output | Clock: LVDS, MAX 50 MHz (150 MHz, Opt. 110) DV (Data Valid), MSW (Most Significant Word) indicators, LVDS |
| Control Input | IQ data output enabled, connecting GND enables output of IQ data |
| Clock Rising Edge to Data Transition 时间 (hold 时间) | 8.4 ns (typical, standard), 1.58 ns (typical, Opt. 110) |
| Data Transition to Clock Rising Edge (setup 时间) | 8.2 ns (typical, standard), 1.54 ns (typical, Opt. 110) |
| 10 MHz REF OUT | 50 Ω, BNC, >0 dBm |
| External REF IN | 50 Ω, BNC, –10 dBm - +6 dBm, 1 MHz to 25 MHz in 1 MHz steps, plus 1.2288 MHz, 4.8 MHz, and 19.6608 MHz |
| External REF IN Frequency Accuracy Required | ≤ ±0.3 ppm |
| TRIG 2/Gate IN | BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V |
| GPIB Interface | IEEE 488.2 |
| LAN Interface Ethernet | RJ45, 10/100/1000 Base-T |
| USB Ports | USB 2.0, two ports |
| VGA Output | VGA compatible, 15 DSUB |
| Audio out | 3.5 mm headphone jack |
| Noise Source Drive | BNC, +28 V, 140 mA (nominal) |
整体特点
| 温度范围 | |
| Operating | +5 °C to +50 °C. (+5 °C to +40 °C when accessing DVD) |
| Storage | –20 °C to +60 °C |
| 预热时间 | 20 min. |
| 工作高度 | |
| Operating | up to 3000 m (Approximately 10,000 ft.) |
| Non-operating | up to 12,190 m (40,000 ft.) |
| 相对湿度 | |
| Operating and Non-operating | 90% RH at 30 °C (No condensation, Max. wet bulb, 29 °C) |
| (80% RH max when accessing DVD) | |
| 振动 | |
| Operating |
0.22 Grms, 5 Hz to 500 Hz (except when accessing DVD and 选项06 Removable HDD) |
| Non-operating |
2.28 Grms, 5 Hz to 500 Hz |
| 震动 | |
| Operating | 15 G, half-sine, 11 ms duration. (1 G max when accessing DVD and 选项06 Removable HDD) |
| Non-operating | 30 G, half-sine, 11 ms duration. |
| 安全 | UL 61010-1:2004 |
| CSA C22.2 No.61010-1-04 | |
| 电磁兼容能力 | EC Council EMC Directive 89/336/EEC, amended by 93/68/EEC |
| EN61326, Class A | |
| AS/NZS CISPR 11, Class A (Australia) | |
| 功率要求 | 90 VAC to 240 VAC, 50 Hz to 60 Hz. |
| 90 VAC to 132 VAC, 400 Hz. | |
| 功耗 | 600 W max. |
| 数据存储 | Internal HDD, USB ports, DVD±RW (选项07), Removable HDD (选项06) |
| 校准间隔 | One year |
| 保修 | One year |
| GPIB | SCPI-compatible, IEEE488.2 compliant |
| Temperature Range | |
| Operating | +5 °C to +50 °C. (+5 °C to +40 °C when accessing DVD) |
| Storage | –20 °C to +60 °C |
| Warm-up 时间 | 20 min. |
| Altitude | |
| Operating | up to 3000 m (Approximately 10,000 ft.) |
| Non-operating | up to 12,190 m (40,000 ft.) |
| Relative Humidity | |
| Operating and Non-operating | 90% RH at 30 °C (No condensation, Max. wet bulb, 29 °C) |
| (80% RH max when accessing DVD) | |
| Vibration | |
| Operating |
0.22 Grms, 5 Hz to 500 Hz (except when accessing DVD and Opt. 06 Removable HDD) |
| Non-operating |
2.28 Grms, 5 Hz to 500 Hz |
| Shock | |
| Operating | 15 G, half-sine, 11 ms duration. (1 G max when accessing DVD and Opt. 06 Removable HDD) |
| Non-operating | 30 G, half-sine, 11 ms duration. |
| Safety | UL 61010-1:2004 |
| CSA C22.2 No.61010-1-04 | |
| Electromagnetic Compatibility, Complies with- | EC Council EMC Directive 89/336/EEC, amended by 93/68/EEC |
| EN61326, Class A | |
| AS/NZS CISPR 11, Class A (Australia) | |
| Power Requirements | 90 VAC to 240 VAC, 50 Hz to 60 Hz. |
| 90 VAC to 132 VAC, 400 Hz. | |
| Power Consumption | 600 W max. |
| Data Storage | Internal HDD, USB ports, DVD±RW (Opt. 07), Removable HDD (Opt. 06) |
| Calibration Interval | One year |
| Warranty | One year |
| GPIB | SCPI-compatible, IEEE488.2 compliant |
物理特点
| 重量 | kg | lb. |
| 带所有选项时 | 26.4 | 58 |
| 外观尺寸 | mm | in. |
| 高度 | 282 | 11.1 |
| 宽度 | 473 | 18.6 |
| 深度 | 531 | 20.9 |
| Weight | kg | lb. |
| With All Options | 26.4 | 58 |
| Dimensions | mm | in. |
| Height | 282 | 11.1 |
| Width | 473 | 18.6 |
| Depth | 531 | 20.9 |
注: 物理特点, 带支脚, 没有附件包。
订货信息
RSA6106A
实时频谱分析仪, 9 kHz - 6.2 GHz。
RSA6114A
实时频谱分析仪, 9 kHz - 14 GHz。
这两款均包括: 快速入门手册(印刷), 应用指南(印刷), 可以打印的在线帮助文件,编程人员手册(光盘), 电源线, BNC-N适配器, USB键盘, USB鼠标, 包, 前面保护罩。注：在订货时请指明电源插头和语言选项。
选项
| 选项 | 描述 |
|---|---|
| 选项01 | －内部前置放大器, 10 MHz - 3 GHz, 30 dB 增益, 2 GHz 时4 dB 的噪声 系数, 典型值。 |
| 选项02 | 1 GB 存储器, 频率模板触发。 |
| 选项05 | 数字IQ 输出和500 MHz 模拟 IF 输出。 |
| 选项06 | 可拆卸硬盘。可以拆下内置硬 盘，不兼容选项07 或08。 |
| 选项07 | DVD-RW, 必带的选件, 免费, 不包括内置硬盘(不兼容选项06 或08)。 |
| 选项08 | 可拆卸固态硬盘。可以拆下内 置硬盘，不兼容选项06 或07。 |
| 选项11 | 相噪和抖动测量。 |
| 选项20 | 高级信号分析 (包括脉冲测量)。 |
| 选项21 | 通用调制分析 |
| 选项110 | 110 MHz 实时采集带宽. |
| 选项1R | 机架安装套件. |
附件
| 附件 | 描述 |
|---|---|
| RTPA2A 实时频谱分析仪探头适配器兼 容能力 |
Supports TekConnect probes P7225, P7240, P7260, P7330, P7313, P7350, P7350SMA, P7380, P7380SMA |
| RSAVu | SW based on the RSA3000 platform for analysis supporting 3G wireless standards, WLAN (IEEE 802.11a/b/g/n) phase noise measurements, and more measurements |
| RSAIQWIMAX | WiMAX 802.16-2004 and 802.16.e standards support |
| 额外的可拆卸硬盘 |
For use with 选项06 (Windows XP and instrument SW pre-installed). 065-0751-00 |
| 额外的可拆卸硬盘(固态) |
For use with 选项08 (Windows XP and instrument SW pre-installed). 065-0765-00 |
| 手提箱 | 016-1963-00 |
| 机架安装翻新配件 | 016-1962-00 |
| 额外的用户手册 (纸面) | 071-1909-xx |
| 服务 手册 (纸面) | 071-1914-xx |
国际电源插头选项
| 选项 | 描述 |
|---|---|
| 选项A0 | 北美电源插头 |
| 选项A1 | 通用欧洲电源插头。 |
| 选项A2 | 英国电源插头 |
| 选项A3 | 澳大利亚电源插头 |
| 选项A4 | 北美240 V电源插头 |
| 选项A5 | 瑞士 电源插头 |
| 选项A6 | 日本 电源插头 |
| 选项A10 | 中国 电源插头 |
| 选项A11 | 印度 电源插头 |
| 选项A99 | 不带电源线或交流适配器。 |
服务
| 选项 | 描述 |
|---|---|
| 选项C3 | 校准 服务 3 年 |
| 选项C5 | 校准 服务 5 年 |
| 选项D1 | 校准 数据报告 |
| 选项D3 | 校准 数据报告 3 年 (选项 C3) |
| 选项D5 | 校准 数据报告 5 年 (选项 C5) |
| 选项R3 | 维修 服务 3 年 |
| 选项R5 | 维修 服务 5 年 |
| 选项CA1 | 提供一次校准服务或在指定 校准间隔时校准，以先到者为准。 |
升级
RSA61UP
| 选项 | 描述 |
|---|---|
| 选项01 | 内部前置放大器, 10 MHz - 3 GHz, 30 dB 增益, 2 GHz 时4 dB 的噪声 系数, 典型值。 |
| 选项02 | 1 GB 存储器, 频率模板触发 |
| 选项05 | 数字IQ 输出和500 MHz 模拟 IF 输出。 |
| 选项06 | 可拆卸硬盘。可以拆下内置硬 盘，不兼容选项07 或08。 |
| 选项07 | DVD-RW, 必带的选件, 免费, 不包括内置硬盘(不兼容选项06 或08)。 |
| 选项08 | 可拆卸固态硬盘。可以拆下内 置硬盘，不兼容选项06 或07。 |
| 选项20 | 高级信号分析 (包括脉冲测量)。 |
| 选项21 | 通用调制分析 |
| 选项110 | 110 MHz 实时采集带宽 |
| 选项IF | 安装服务 |
| 选项IFC | 安装服务 + 校准 |
Languages
| 选项 | 描述 |
|---|---|
| 选项L0 | 英语 手册 |
| 选项L5 | 日语 手册 |
| 选项L7 | 简体中文手册 |
| 选项L10 | 俄语 手册 |
仪器保证：
我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
品牌推荐 |
||
|
||
|
Copyright© 2022 All Rights Reserved. 深圳市嘉惠捷科技有限公司 版权所有 [粤ICP备11090750号] [法律顾问] 公司地址：深圳市南山区西丽牛成路221号8楼 邮编：518000 在线QQ服务:  销售服务热线：13715327187 电话：0755-86016691 传真：0755-86016691回收热线：13982098642 E-mail:sales@test-e.com |
