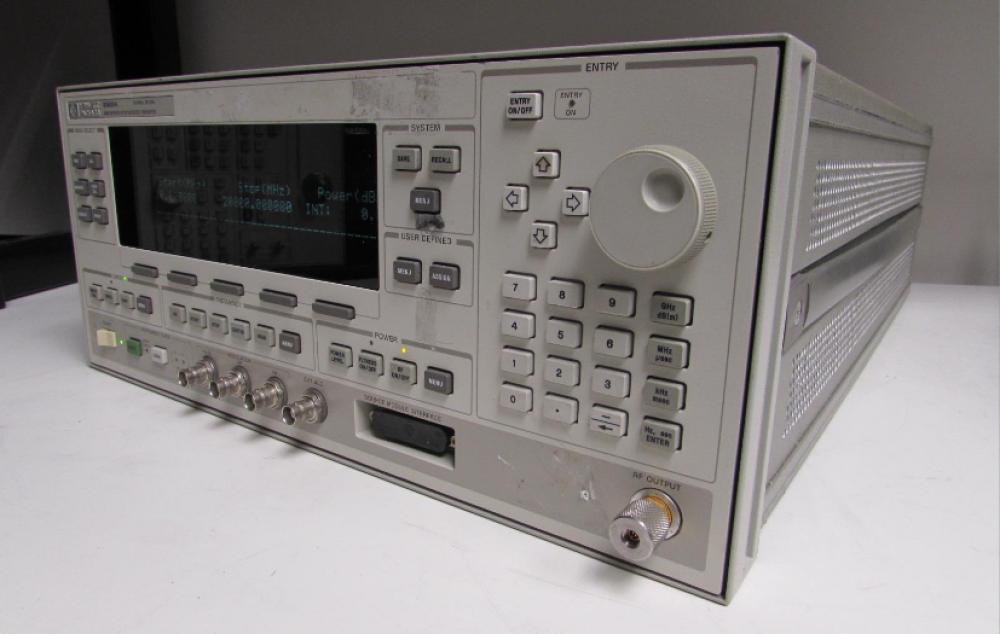

Agilent/HP/83620A/Synthesized Sweeper, 10 MHz to 20 GHz
- Agilent/HP/83620A/Synthesized Sweeper, 10 MHz to 20 GHz
- 欲购买或租赁Agilent/HP/83620A/Synthesized Sweeper, 10 MHz to 20 GHz？请在线咨询或拔打24小时电话：13715327187
详细资料：
描述
The Agilent 83620A synthesized sweeper is used for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83620A to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.
-
Scan modulation to simulate antenna scan patterns
-
Accurate fixed and swept frequency offset for two-tone measurement
-
User flatness correction for leveling at remote points in the test system
-
General purpose source for use in component test, receiver test and for frequency conversion
-
Sweep modes: Step, List, Ramp
-
Maximum power (<20 GHz): +13 dBm
-
Power sweep range: -20 dBm to maximum power
-
Phase noise (20 GHz at 10 KHz): -70 dBc
-
Max FM deviation (locked): +/- 8 MHz
