Exfo/IQS-3100/可变光衰减器

• Exfo/IQS-3100/可变光衰减器
• 欲购买或租赁Exfo/IQS-3100/可变光衰减器？请在线咨询或拔打24小时电话：13715327187

详细资料：

EXFO IQS-3100 可调衰减器

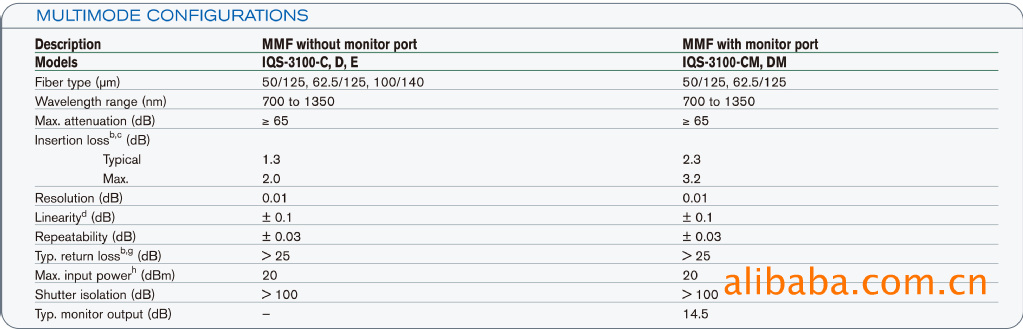

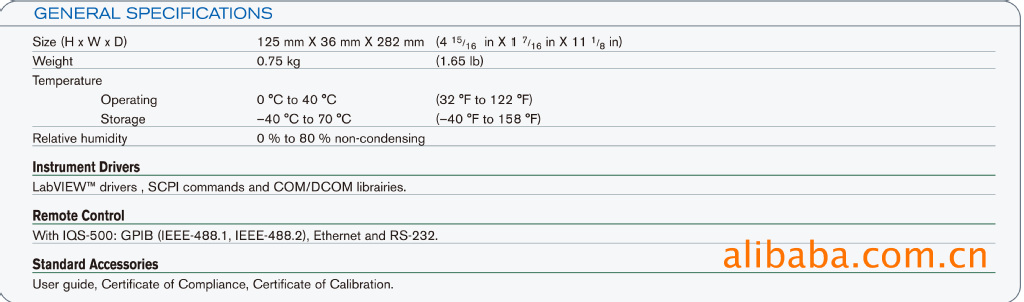

Product Description

NOTES
a. At 23 °C ± 5 °C.
b. Measured at 1310 nm and 1550 nm for singlemode units, measured at 850 nm and 1300 nm for
multimode units.
c. Measured with FC/UPC connectors for singlemode units and FC/PC for multimode units.
d. Measured at 1310 nm and 1550 nm (up to 60 dB) for singlemode units and 850 nm and 1300 nm
(up to 50 dB) for multimode units, non-polarized light.
e. Measured between 1520 nm and 1570 nm at attenuation 20 dB, typical for BWM.
f. Measured at 1550 nm, attenuation of < 30 dB.
g. The return loss is limited by the return loss of the connectors. The connectors used are FC/APC for
singlemode units and FC/PC for multimode units.
h. Typical value. Prolonged exposure may damage the unit.

仪器保证：

我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
