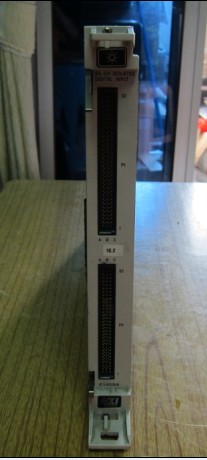

Keysight/E1459A/64通道隔离数字输入/中断
详细资料:主要技术指标
描述The Agilent E1459A 64-channel isolated digital input/interrupt is a C-size, 1-slot, register-based VXI module. It is used to sense dc levels and edge transitions up to 48 Vdc. All inputs are optically isolated to withstand up to 125 V rms or Vdc. Plus, using the module''''''''s built-in 5 V supply with 9.4 kOhms effective pull-up resistance, you can detect whether external switches are open or closed. The debounce feature is programmable for periods of 16 µs to 1074 s in binary increments. Channel groups 1 to 32 and 33 to 64 can each have a unique programmed debounce period. Each word (16-bit/channel) has strobe in, ready for data, and interrupt out. Strobe-in lines can be connected in parallel for 32- or 64-bit transfers. 仪器保证:我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。 |
|
|||||||||||||||||
|
