    ANDO/AQ4321A/安藤(Ando)C+L波段可调谐激光源

    • ANDO/AQ4321A/安藤(Ando)C+L波段可调谐激光源
    • 欲购买或租赁ANDO/AQ4321A/安藤(Ando)C+L波段可调谐激光源?请在线咨询或拔打24小时电话:13715327187

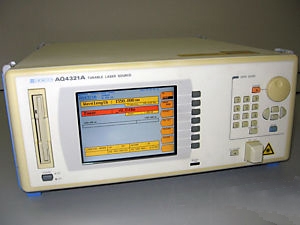

    安藤(Ando)C+L波段可调谐激光源/ANDO缩略图

    详细资料:

    安藤(Ando)C+L波段可调谐激光源AQ4321A 详细描述

    It has the following specifications:
    Model: AQ4321A
    Wavelength range: 1480 to 1580 nm
    Wavelength set resolution: 0.001 nm
    Wavelength stability: ±100 MHz/h (±0.8 pm/h) (typ.) (2, 3)
    Absolute wavelength accuracy:
    ±0.01 nm 2, 3, 4, 8)
    ±0.015 nm, ±0.01 nm (typ.) (2, 3, 4, 7)
    Relative wavelength accuracy: ±0.01 nm (typ.) (2, 3, 4, 7)
    Spectral width:
    Narrow 200 kHz (typ.) (1 MHz or less)
    Wide 200 MHz (typ.) (100 MHz or more)
    SMSR: 50 dB or more (optical output: +7 dBm, 1550 nm)
    Optical output:
    +10 dBm (typ.) peak (D Model: +7 dBm (typ.) peak)
    +7 dBm or more, 1520 to 1570 nm
    +5 dBm or more, 1500 to 1580 nm
    +3 dBm or more, 1480 to 1580 nm
    Settable optical output range: 20 dB or more (0.1 dB steps, at peak wavelength)
    Optical output stability:
    5 min ±0.01 dB or less (2, 9)
    1 h ±0.05 dB or less (5, 9)
    8 h ±0.3 dB or less (6, 9)
    Optical output accuracy: ±1 dB or less (4, 9)
    Optical output reproducibility: ±0.04 dB, optical output fixed (4, 5, 9)
    Optical output level flatness: ±0.1 dB (4,9) (1500 to 1580 nm)
    RIN: -145 dB/Hz (typ.)
    Internal modulation (CHOP):
    Set frequency: 0.2 to 300 kHz (10)
    Set resolution: 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz 10)
    External modulation (CHOP):
    Set frequency: 0.2 to 300kHz (10)
    Set resolution: –
    Direct modulation: 5% or less (Modulation frequency: 100 kHz to 300 MHz, modulation input level: 0 dBm or less)
    Wavelength sweep speed: 100 nm/sec (max.)
    Applicable optical fiber: SMF (10/125 µm)
    Applicable connector: FC/PC (Standard), optical return loss: 50 dB or more

    Notes
    1) The above specifications without any special remarks are results under the following conditions: CW light, at the output point of 2 m-long optical fiber, after warming-up for 1 hour
    2) Constant temperature: 23 °C
    3) Spectral width: Narrow, Sweep FINE, Opt ATTN Cont = 1
    4) Optical output level: +3 dBm
    5) Within ±1 °C in the range of 10 to 35 °C
    6) 10 to 35 °C
    7) 2d (1 hour after wavelength calibration)
    8) At 1520 nm wavelength
    9) Spectral width: wide
    10) Duty: 50 ±5 %

    仪器保证:

    我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
