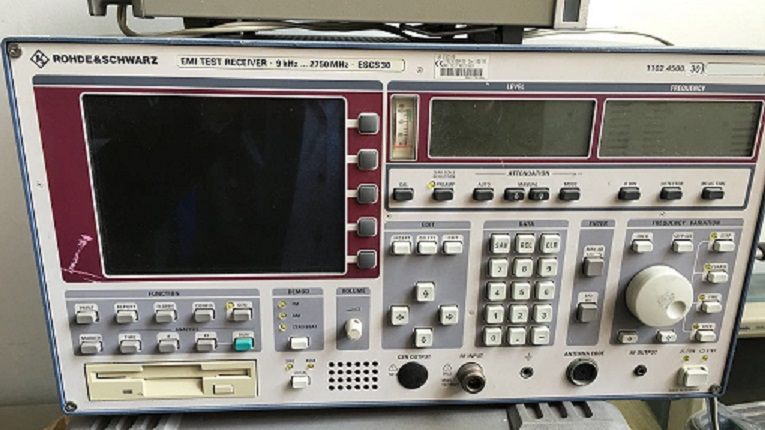

R&S/ESCS30/电磁干扰接收机
- R&S/ESCS30/电磁干扰接收机
- 欲购买或租赁R&S/ESCS30/电磁干扰接收机?请在线咨询或拔打24小时电话:13715327187
详细资料:
Fully compliant to CISPR16-1 and VDE0876
Integrated preselector
Level measurement range -38 dBµV to +137 dBµV
For all commercial EMI standards such as CISPR, EN, ETS, FCC, ANSI C63.4, VCCI and VDE
Automatic overload detection
measurement uncertainty <1 dB (typ. <0.5 dB)
ten integrated preselectors
selectable preamplifier 10 dB
CISPR bandwidths 200 Hz, 9 kHz, 120 kHz, 1 MHz
detectors (peak, average, quasipeak) with parallel output of results and bargraph display on colour monitor
direct selection of CISPR measurement ranges with bandwidth, step width and measurement time
automatic scan of frequency ranges and lists with up to 400 different frequencies
automatic level calibration and builtin selftest function
macros for RFI voltage, RFI power and RFI field-strength measurements
nonvolatile storage of complete instrument setups as well as limit lines and frequency-dependent correction factors of antennas and accessories
storage of results, limit and correction values on built-in 3.5“ disk drive
time domain analysis with display range from 5 ms to 1 h, manual trigger (internal and external), userselectable zooming of up to 30,000 measured values
IF spectrum analysis with resolution of 1, 3 or 10 kHz over a display range from 10 kHz to 10 MHz (option)
9 kHz to 2750 MHz tracking generator (option).
仪器保证:
我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
