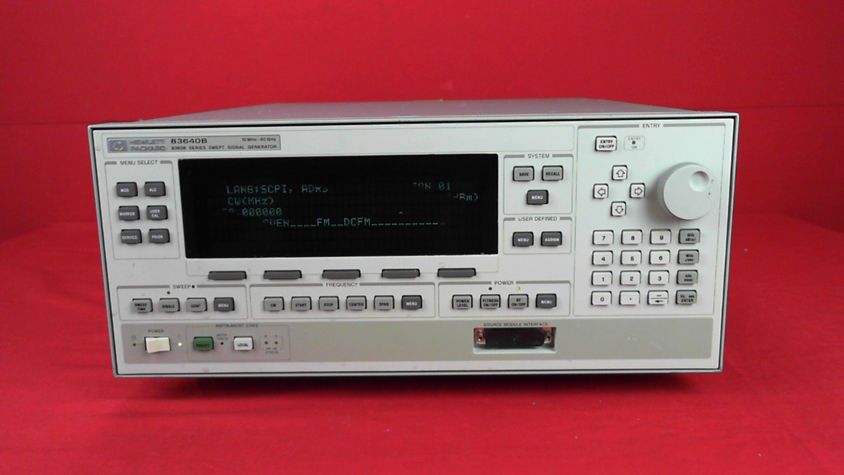

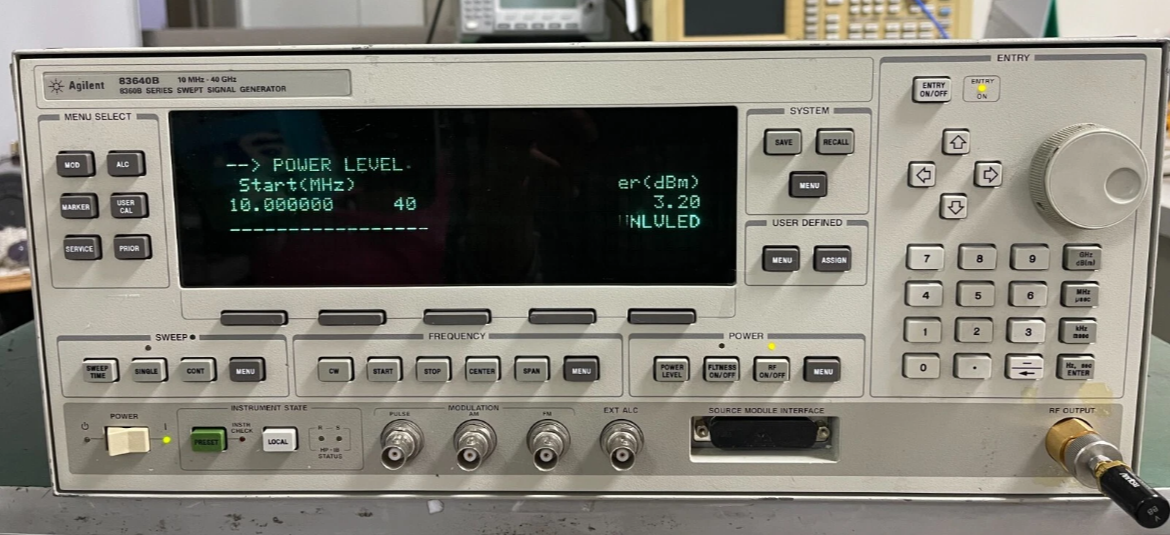

Agilent/83640B/安捷伦 83640B 合成扫频信号发生器
- Agilent/83640B/安捷伦 83640B 合成扫频信号发生器
- 欲购买或租赁Agilent/83640B/安捷伦 83640B 合成扫频信号发生器？请在线咨询或拔打24小时电话：13715327187
详细资料：
主要特性与技术指标
- +10 dBm calibrated output power
- -50 dBc harmonics <26.5 GHz typical
- SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
- Complete analog sweeper
- 1 Hz frequency resolution (Option 008)
- Pulse, amplitude and frequency modulation (8360B Series only)
- -110 dBm output power with step attenuator (Option 001)
描述
The Keysight 83640B synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83640B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.
仪器保证：
我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
