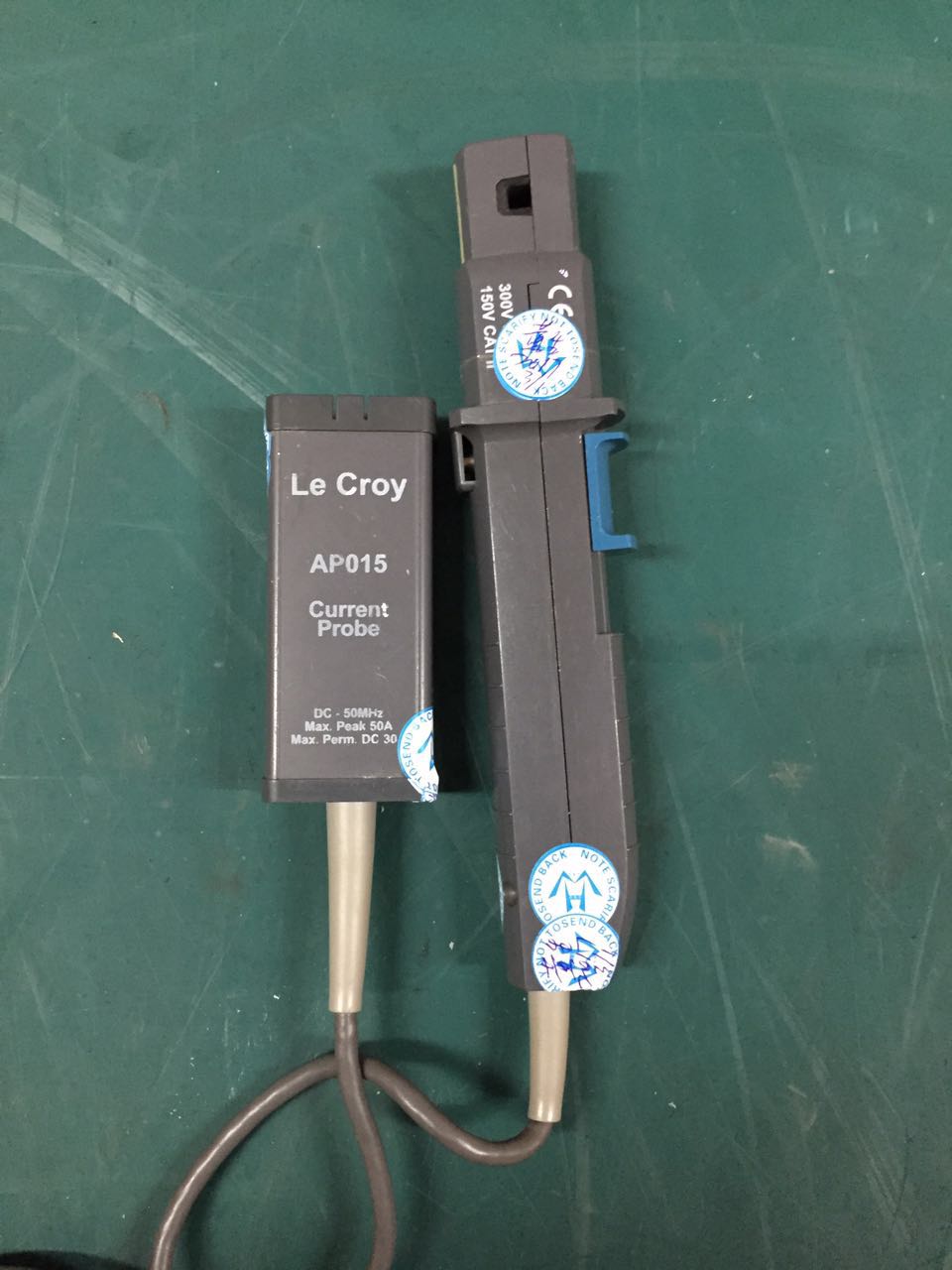

Lecroy/AP015/电流探头
- Lecroy/AP015/电流探头
- 欲购买或租赁Lecroy/AP015/电流探头?请在线咨询或拔打24小时电话:13715327187
详细资料:
The Teledyne LeCroy AP015 current probe can measure continuous current of 30Arms and peak pulses of up to 50A for durations up to 10 seconds. This probe also features an overheating protection circuit, which will display an on-screen warning to the user to prevent damage. A probe unlock detection feature is also built in to the AP015 to ensure accurate measurements.
AP015 Specifications/Features
- Bandwidth (Probe Only): 50MHz
- Coupling: AC, 1MΩ; DC, 1MΩ; GND
- Risetime (typical): 7ns
- Max Continuous Input Current: 30A
- Max Peak Current (at pw): 50A for <10s
- Sensitivity: 10mA/div to 50A/div
- Amplitude Accuracy: ±1% of reading to 15A ±2% of reading to 30A
- Maximum Circuit Voltage: 300V CAT I, 150V CAT II (Bare Conductor)
- Interface: all ProBus Oscilloscopes
- Cable Length: 2m (6.6ft)
- Maximum Conductor Size: 5mm (0.2in)
仪器保证:
我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
