Specifications

.

• Frequency Range: 10 kHz to 3.5 GHz

• Resolution: resolution bandwidth (3-d points) 1 kHz to 1 MHz in 1-3 steps; (6-dB points) 9 kHz, 120 kHz, when QP mode is selected

• Dynamic Range:

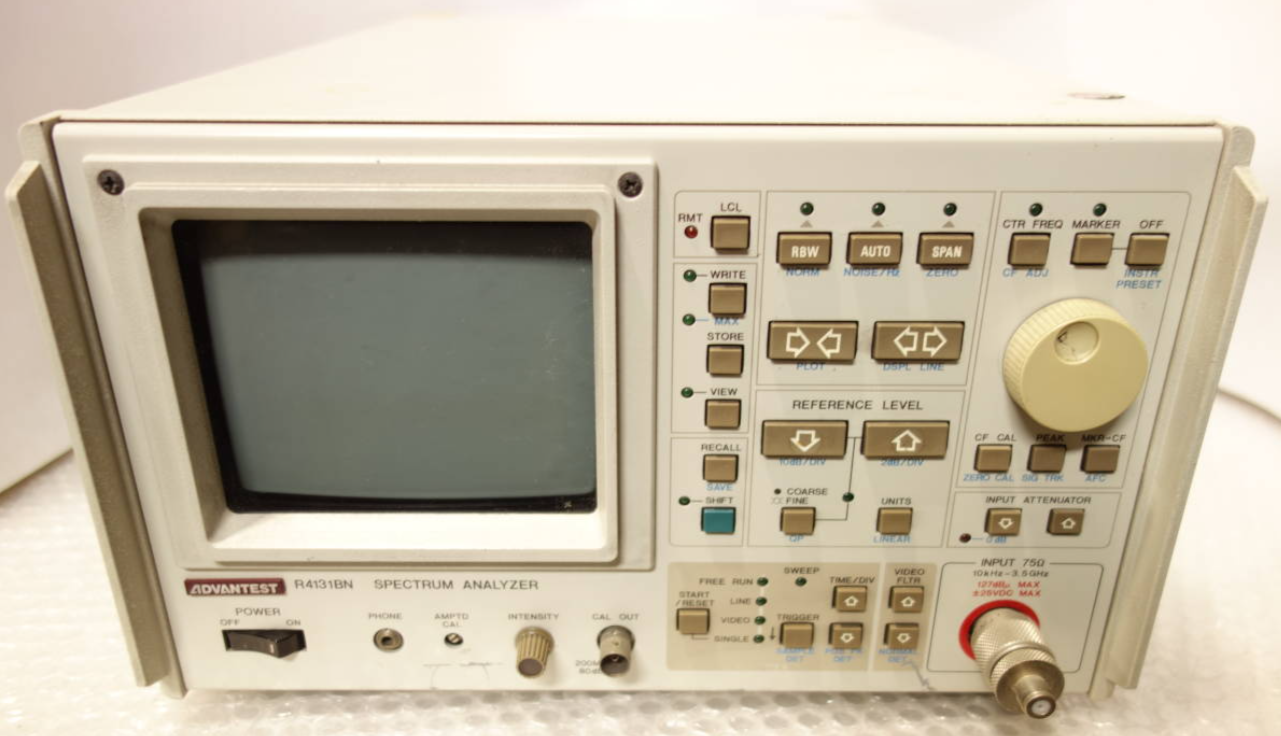

  Average Noise Level -116dBm (-114 dBm for the R4131BN) + 1.55f (GHz) dB or less (at a resolution bandwidth of 1 kHz, with a 10 Hz video filter, with attenuation 0 dB, at 1 MHz or above)

• Frequency Response (with 10dB attenuation):
  ± 1 dB (100kHz < frequency < 2 GHz)
  ± 2 dB (10kHz < frequency < 3.5 GHz)

• Save/Recall: up to 3 sets of measurement conditions, including waveforms, can be stored in memory and auto-recall can be used to automatically recall stored conditions when power is applied

• Direct plot output to HPGL plotter
