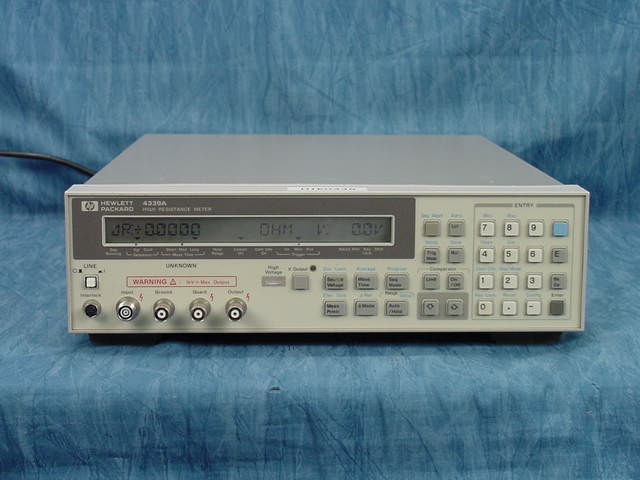

Agilent/HP/4339A/高阻表

• Agilent/HP/4339A/高阻表
• 欲购买或租赁Agilent/HP/4339A/高阻表？请在线咨询或拔打24小时电话：13715327187

详细资料：

• Wide measurement range: 1 x 10³ ohm to 1.6 x 10¹⁶ohm

• Stable test fixtures: resistivity cell, component test fixture

• High-speed measurement: 10 ms

• Test sequence programming

• Resistivity calculations

• Grounded DUT measurement

Specifications

Measurement Functions

• Measurement Parameters: R (dc resistance), I (dc current), rs (surface resistivity), rv (volume resistivity)

• Mathematical Functions: Deviation and percent deviation

• Ranging: Auto and manual

• Trigger: Internal, external, manual, and HP-IB

• Delay Time: 0 to 9999 ms in 1 ms steps

• Test Cable Lengths: 2 m maximum

• Measurement Time: Short, medium, and long

• Averaging: 1 to 256

• Test Voltage: 0 to 1000 Vdc, 100 mV steps @ 0 to 200 V, 1 V steps @ 200 to 1000 V

• Maximum Current: 10 mA @ < 100 V, 5 mA @ < 250V, 2 mA @ < 500 V, 1 mA @ < 1 kV

• Current Compliance Setting: 0.5 mA, 1 mA, 2 mA, 5 mA, 10 mA

仪器保证：

我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
