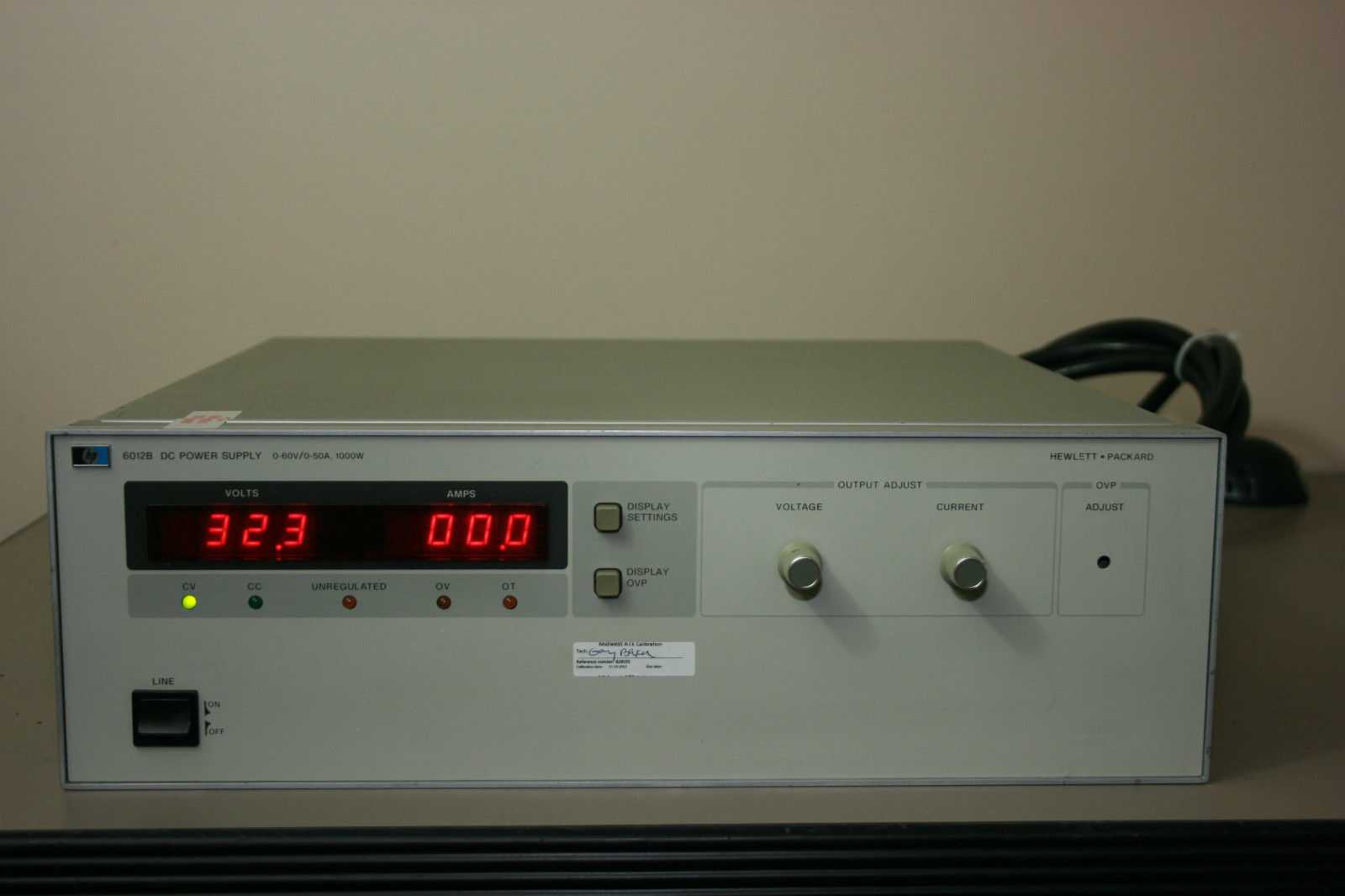

Keysight/6012B/60V/50A/1000W 直流电源

• Keysight/6012B/60V/50A/1000W 直流电源
• 欲购买或租赁Keysight/6012B/60V/50A/1000W 直流电源？请在线咨询或拔打24小时电话：13715327187

详细资料：

0 to 60 V, 0 to 50 A or 1200 W max autoranging Typical rating 60 V/17.5 A, 40 V/30 A, 20 V/50 A Constant Voltage, Constant Current Overvoltage Protection Ripple and Noise 5 mVrms, 40 mV pk to pk Load Regulation 5 mV, Line Regulation 3 mV

Output ratings (0 to 55°C) 0 to 60 V, 0 to 50 A Maximum power 1,200 W Autoranging output V1, P1: 60 V, 17.5 A V2, P2: 40 V, 30 A V3, P3: 20 V, 50 A Ripple and noise (20 Hz to 20 MHz) Constant Voltage: 8 mV rms Constant Voltage: 40 mV peak-to-peak Constant Current: 25 mA rms Load regulation 0.01% + 5 mV 0.01% + 10 mA Transient response time (10% step change) Time: 2 ms Level: 100 mV Supplemental Characteristics Programming Resolution Voltage 15 mV Current 12.5 mA dc floating voltage (either terminal can be grounded or floated from chassis ground) ± 240V ac input current 100 Vac (system only): 24 A 120 Vac: 24 A 220 Vac: 15 A 240 Vac: 14 A Physical Specifications Size 425.5 mm W x 132.6 mm H x 516.4 mm D (16.75 in. x 5.25 in. X 20.33 in.) Net Weight 16.3 kg (36 lb.)

仪器保证：

我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
