Agilent/HP/81525A/光探头

• Agilent/HP/81525A/光探头
• 欲购买或租赁Agilent/HP/81525A/光探头？请在线咨询或拔打24小时电话：13715327187

详细资料：

81525A|Agilent 81525A|HP 81525A

Specifications at a glance for the 81525A:
Wavelength Range: 800 to 1650 nm
Detector Type (Sensor Element): InGaAs
Detector Size (diameter): 5 mm
Power Range: -70 to +23 dBm (800 - 1650 nm)
Wavelength Accuracy (Uncertainty): +/- 3.0% (900 to 1600 nm)
Additional Information

The Agilent optical power heads are specially designed for low PDL, low spectral ripple and high return loss and are used for optical component test. The heads come with a magnetic D-shape adapter and provide a safe stand.
Applicable Fiber Type: Standard Single-mode And Multimode max. 100 um core size, NA < 0.3
Linearity: -50 to +10 dBm
Connector Type Options:
81000FA: FC/PC connector adapter
81000KA: SC/PC connector adapter
81000PA: E-2000 connector adapter
81000VA: ST/PC connector adapter
81003LA : LC/PC connector adapter

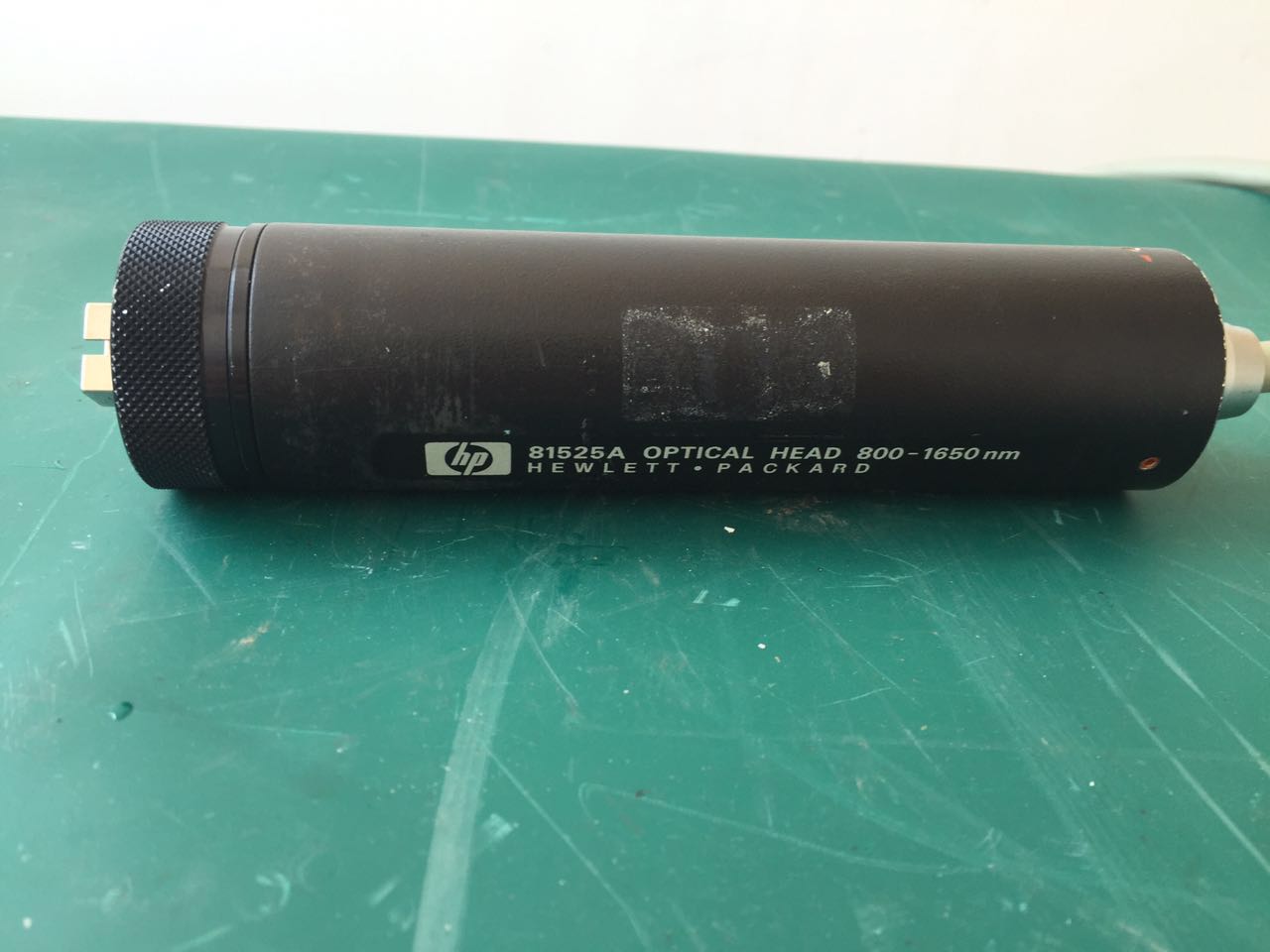

The 81525A is a high power InGaAs optical head. Specs: 5mm. +27 to -70 dBm.800 to 1650 nm. It is used with: HP8163A, HP8164A, HP8153A.

仪器保证：

我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
