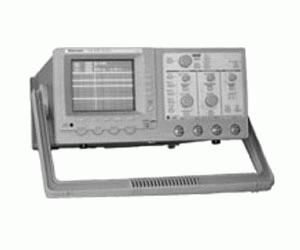

Tektronix/TAS475/100MHz示波器

• Tektronix/TAS475/100MHz示波器
• 欲购买或租赁Tektronix/TAS475/100MHz示波器？请在线咨询或拔打24小时电话：13715327187

详细资料：

Form Factor	Benchtop
Bandwidth	100 MHz
Rise time	3.5 ns
Number of Channels	4 ch
Min. Vertical Sensitivity	2 mV/div
Maximum Vertical Sensitivity	5 V/div
Vertical(or Deflection Factor) Accuracy	2.5 %
Input Coupling	AC,DC,GND
Input Impedance	1 MOhm
Maximum Input Voltage	400 V(dc+p
Main time base - lowest	20 ns/div
Main time base - highest	0.5 s/div
B Sweep Time Base (low)	20 ns/div
B Sweep Time Base (high)	5 ms/div
Time base Magnification factor (X?)	x10
Timebase accuracy	2 %
Trigger Source	External,Internal
Trigger Modes	Auto,Normal,TV
Trigger Sensitivity	0.3 mV
Display Type	CRT Monochrome

仪器保证：

我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
