Agilent/HP/8751A/惠普 8751A 5Hz-500MHz网络分析仪

Agilent/HP/8751A/惠普 8751A 5Hz-500MHz网络分析仪
欲购买或租赁Agilent/HP/8751A/惠普 8751A 5Hz-500MHz网络分析仪？请在线咨询或拔打24小时电话：13715327187

详细资料：

5 Hz to 500 MHz
±0.02 dB, ±0.12° dynamic accuracy
0.001 Hz, 0.001 dB, 0.001°, 10 ps resolution
Full 2-port and interpolative calibration
Conjugate matching analysis
10 updates of 201 sweep points per second
0.4 ms/point fast list sweep (IFBW = 4 kHz)
Up to 4 traces simultaneous measurement/display
Eight active trace markers per channel
Instrument BASIC for customization
List sweep for efficient measurement

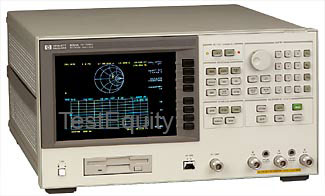

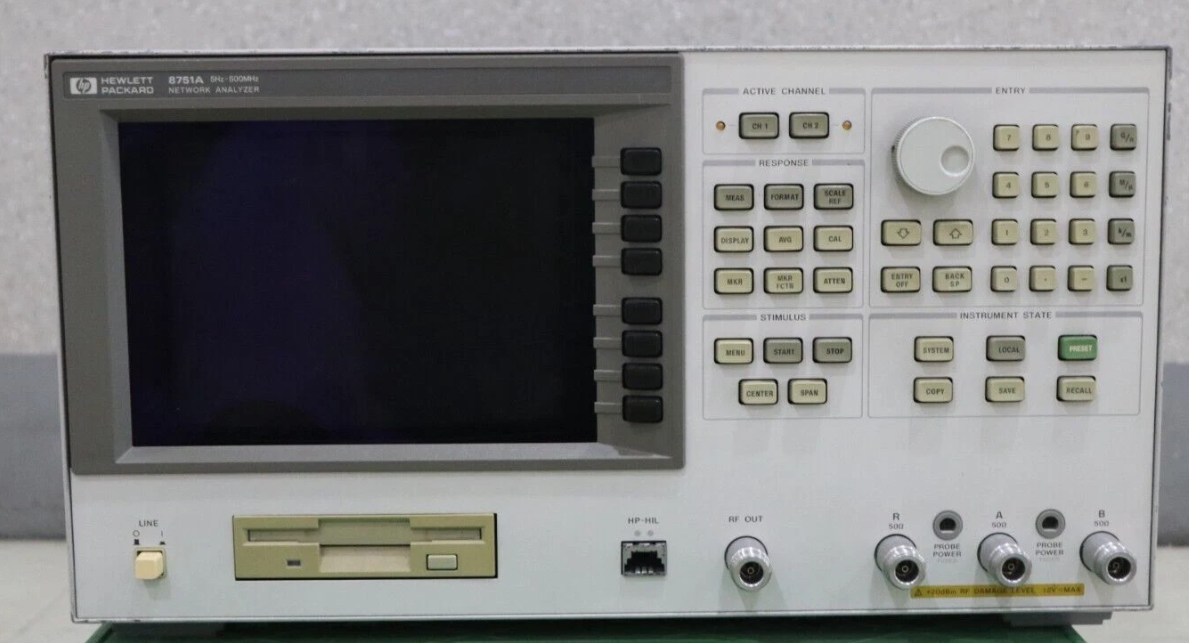

The Agilent 8751A network analyzer is a high-throughput instrument with lab precision that covers 5 Hz to 500 MHz. The Agilent 8751A provides resolution of 0.001 Hz, 0.001 dB, 0.001°, and 10 ps for characterizing the linear behavior of either passive or active networks, devices, or components in the lab and the production test areas. The built-in 1.44 MB disk drive is for direct save/recall of instrument state, calibration data, and application programs for your customization. Dedicated 50/75 Ω S-parameter test sets, 50/75 Ω T/R test kits, and the 1 MΩ input adaptors are all available.
